Panel / Box / Monitor / System Series

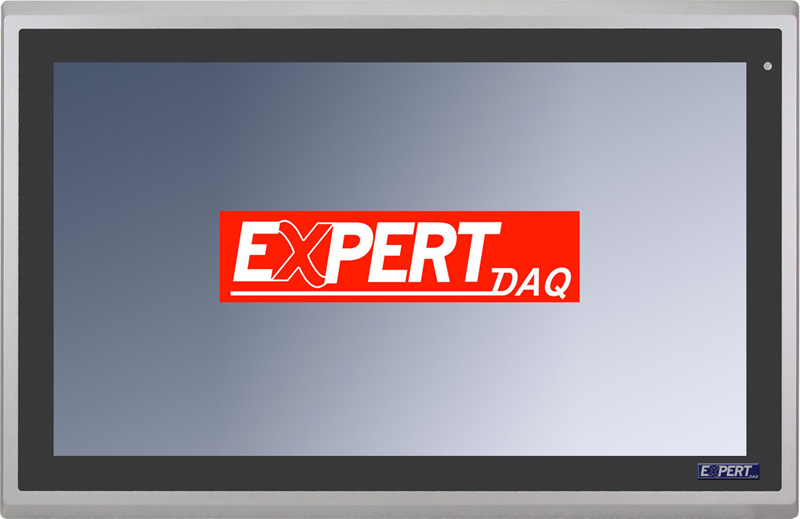

EX91021ip                                                                  21.5" Intel 4th Gen. Core i3 panel PC (capacitive)


Key Specifications/Special Features:



Features
Flat front panel touch screen
Fanless design
Intel 4th Gen. Core i3 CPU built-in
Onboard 4GB DDR 3L 1600 MHz/4GB(option)
9~36VDC wide-ranging power input
IP65 compliant front panel
Projected capacitive touchscreen support 7H anti-scratch surface






Specifications:



 System Specifications
 Processor  Onboard Intel 4th Gen. Core i3 CPU Processor
 System Memory  Onboard 4GB DDR 3L 1600 MHz/8GB(option)
 System Chipset  SoC

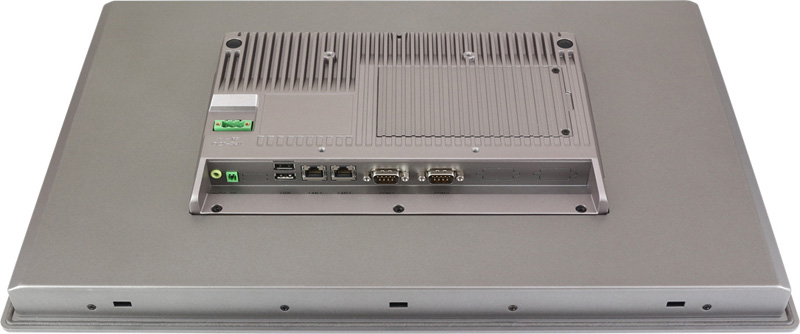

 IO Port
  USB  2 x USB 2.0 type A
 Serial/Parallel   1 x RS-232 DB-9
 1 x DB-9 RS-232/422/485 (Default RS-232)
 Audio   1 x Audio Line Out
 Lan   2 x GbE LAN RJ-45
 HDMI   1 x HDMI Port (Reserved, no Printing)
 Power   1 x 3-pin DC Power input terminal
 1 x 2-pin connector for power on/off button
 Option   2 x RS-232 DB-9 + 1 x Mini-PCIe slot via converter board
 2 x CAN bus via converter board
 2 x USB 2.0 type A + 1 x Mini-PCIe slot + 1xRS-232 DB-9 via converter board
 2 x USB 2.0 type A Via converter board
 Storage Space
 HDD   1 x 2.5" SATA HDD bay for SATA HDD
 Movable device   1 x SD card slot, up to 32GB
 Expansion Bus   1 x Internal Mini-PCIe slot full size
 Display
 LCD Size  21.5
 Max. Resolution  1920x1080
 Max. Color  16.7M
 Luminance (cd/m2)  250
 Contrast Ratio  3000:1
 View Angle  178(H)/178(V)
 Backlight Lifetime  30,000 hrs
 Touch Screen - Capacitive Touch Window Type (for EX91021ip)
 Interface   USB
 Light Transmission  Over 90%
 Power
 Power Input  DC 9~36V
 Power Consumption  33.3W
 Mechanical
 Front Bezel Metal  Aluminum / Panel Mounting
  Rear Panel Metal  Aluminum / VESA Mount 100 x 100
 IP Rating  Front panel IP65
 Dimension  558*362*64.8 mm
 Net Weight (Kg)  7.5Kg
 Environmental
 Operating Temperature  0~50 C
 Storage Temperature  -20~60 C
 Storage Humidity  10~90% @40℃, non-condensing
 Certification  Meet CE/FCC Class A
 Operation System Support  Windows 7 64-bit, WES 7, WES 8, Windows 8.1
