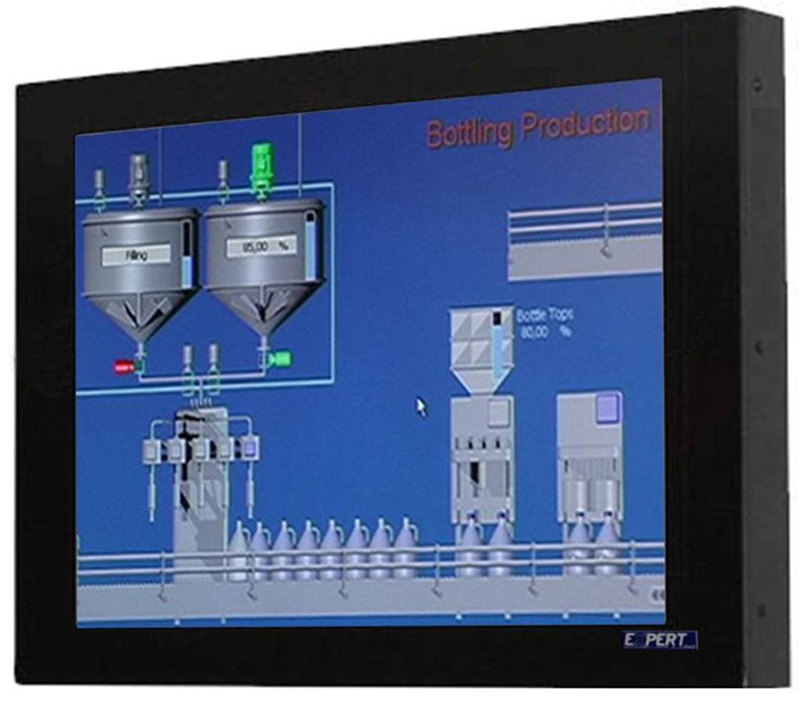

EX9121T                                                                                             12.1” LCD Display monitor with IP65


Key Specifications/Special Features:



Features

12" TFT SXGA LCD

Controller Interface : USB / RS232
Driver & Utility : Windows 95/98/ME/2000/XP/Linux (Red Hat/Mandrake)
0° C ~ + 50° C Range operating temperature
Dual signal interface with VGA & DVI Integrated bracket for easy installation
Versatile mounting method for rear mounting and VESA mounting

CE/FCC: Class B






Serial products:



 Display
 LCD Display  12.1” Active Matrix TFT color LCD
 Active Display Area   245.76 (H) x 184.32 (V) mm
 Resolution   1024 x 768
 Pixels Pitch   0.240 x 0.240 mm
 Brightness(cd/m²)   500 (Typ)
 Contrast Ration   700 : 1 (Typ)
 Viewing Angle   80° / 80°(H) ; 70° / 70°(V)
 Response Time    Tr + Tf = 16ms
 System
 I/O Connectors   DC power input x 1 / D-SUB VGA x 1
 DVI x 1, RS232 for Touch panel x 1
 (optional for USB)
 OSD Control   Flat OSD Key pad on the Rear Side
 Environment
 Operating Temperature   0~50°C

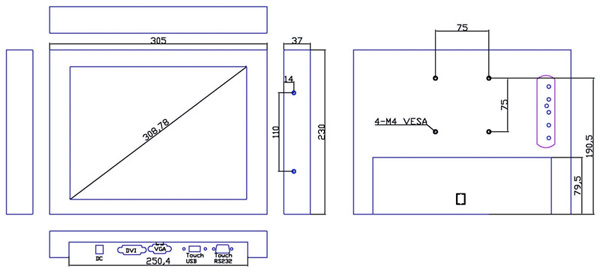

 Mechanical
 Construction   Metal Chassis
 Mounting   VESA 75 x 75 mm
 Dimension  30.5 x 23 x 37 cm
 Net Weight  2.4 KGS
 Power supply
 Power Input   DC 12V
 Options
 Optional DVI Input   Yes
 Optional Touch Panel   Resistive, Capacitive (RS232 or USB)
