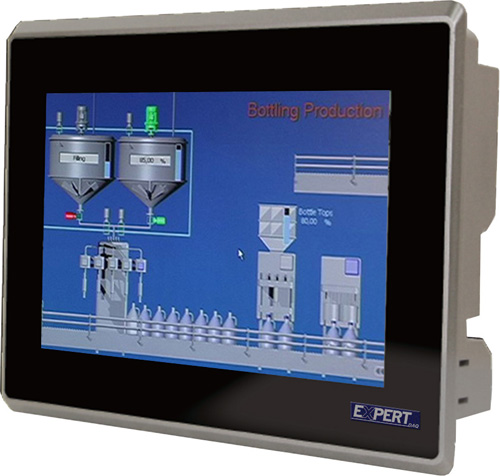

EX91812-A                                                                     12.1" Intel® Atom™ N2600 1.6GHz Fanless HMI


Key Specifications/Special Features:



Features
Variety of LCD Panel Size Selections
Flat Front Panel with IP65 Design
Solid Aluminum Die-casting Chassis
Dual Core Low Power Fanless System






Specifications:



 System Specifications
 Processor  Intel® Atom™ N2600 Dual core 1.6GHz processor
 System Memory  On Board 2GB DDR3 memory
 System Chipset  Intel® US15W
 External I/O Port

 2 x USB 2.0 ports
 2 x RJ-45 GbE ports
 1 x DB-9 RS-232/422/485 COM1, Default RS-232
 1 x DB-9 RS-232
 2 x DB-9 RS-422/485 COM5/6
 1 x Audio Line-out
 1 x HDMI port (Optional)

1 x 3-pin Terminal Block DC power input

 Storage  1 x 2.5” SATA HDD
 1 x SD slot
 Expansion Slots  1 x Internal Mini PCle slot (Half size)
 OS Support  Windows Embedded Standard 7, XP professional, XP Embedded, Embedded CE6.0, Ubuntu 11.10
 Display
 Display Type  12.1” TFT-LCD
 Max. Resolution  800x600
 Max. Color  16.2M
 Luminance (cd/m2)  330
 View Angle  H:160° / V:140°
 Touch Screen
 Type  Resistive Touch, Projected Capacitive Touch (Optional)
 Light Transmission  80%, 90% (Optional)
 Power Supply
 Power Input  DC 9~36V
 Mechanical Specifications
 Construction  Aluminum front bazel and chassis
 IP Rating  IP65 compliant front panel
 Mounting  Panel / VESA 75x75 Mount
 Dimension  317*243*53
 Net Weight (Kg)  4.0Kg
 Environmental
 Operating Temperature  0~50 C
 Storage Temperature  -20~60 C
 Storage Humidity  10~90% @40℃, non-condensing
 Certificate  CE/FCC Class A
