EX92110                                                                                                                        Atom N270 Box PC


Key Specifications/Special Features:



Intel Atom N270 1.6GHz, 512KB L2 cache 533MHz
All solid capacitors motherboard
Long life CMOS Battery Offer 5 years using
12V DC input with Professional Terminal Block
Under 1.5U slim size and 11~32VDC for option
Large heat skin top cover for thermal dissipation






Specifications:



 System Specifications
 Processor

 Intel Atom N270 1.6GHz, 512KB L2 cache 533MHz

 System Chipset

 Intel 945GSE + ICH7M

 System Memory

 1 x DDR2 SO-DIMM slot, up to 2GB 533 MHz

 Consumption

 Max:14.2W@12V

 Power

 1 x 3pin DC power connector, 1 x Rocker switch for power on/off,
 1 x 2pin remote power switch, 2 x LED light for power and HDD indication
 IO Port
 USB Port    4 x USB 2.0 ports

 Serial/Parallel Port

 1 x RS-232 DB9,

 1 x RS-232/422/485 selectable default RS-232 DB9Option: 1 x RS-232 DB9

 Audio   None
 Graph  1 x VGA
 LAN  2 x GbE RJ-45
 Digital I/O

 None

 KB/MS

  None

 Membrane control

 None

 Power

 3 pins terminal block connector

 Storage Space
  HDD

 1 x 2.5" SATA2

  Movable device

 1 x internal CF slot

 Expansion

 On board expansion bus

 1 x Mini PCIe full size

 Expansion slot

 None

 Power

 Power input

 12V DC/Option: 11~32V DC

 Mechanical

 Construction

 Black steel chassis with aluminum heat-sink

 IP rating

 None

 Mounting

 Wall mounting

 Dimension(mm)

 232.5 x 198 x 48.5/269.5 x 198 x 54.5 (with mount kit)

 Net weight(Kgs)

 2.0
 Environment

 Operating temperature(C)

 0~50

 Storage temperature(C)

 -20~60

 Storage humidity

 10 to 90% @ 40C, non- condensing

 Certification

 CE/FCC class A

 Operating System Support

 System Support

 Windows XP Embedded, Windows Embedded Standard 7, Win Pro 7 for Embedded

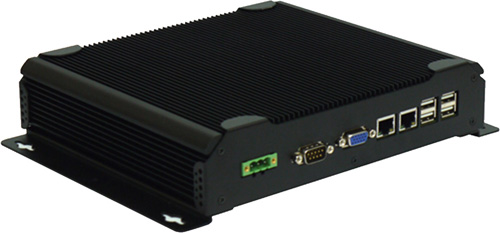

     larger photo

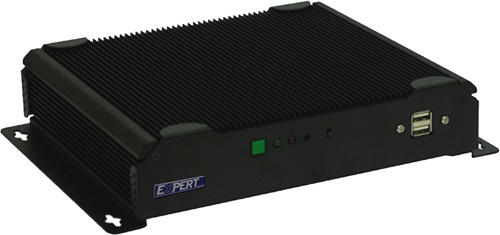

     larger photo
