EX92210                                                     IntelŽ CeleronŽJ1900;Linux kernel 3.0+ ;mSATA SSD fanless BOX PC


Key Specifications/Special Features:



Features

IntelŽ CeleronŽJ1900, Dual-core, clock speed 2.41G
Linux kernel 3.0+ & associated distributions
mSATA SSD from miniPCI socket x 1
Gigabit Ethernet by RJ-45 x 2
Fanless design






Specification:



 MainBaord
CPU  IntelŽ CeleronŽJ1900, Dual-core, clock speed 2.41G, TDP 10W
System Memory  Support DDR3L 1333 MHz, 1* SO-DIMM Slot, Up to 8GB
Cooling Solution  Fanless
BIOS  AMI uEFI BIOS
O.S Support Windows 7 Professional for Embedded System (64bit only)
Windows Embedded 8 Industry (64bit only)
Windows 10
Linux kernel 3.0+ & associated distributions
 Storage device
mSATA SSD  mSATA SSD from miniPCI socket x 1
HDD/SSD  2.5” HDD or 2.5” SSD x 1 (SATA 3.0)
 Front I/O Ports
COM1  DB9 for RS232 x 1
COM2 DB9 for RS485 x 1
USB  USB2.0 x 4
Audio  MIC-in x 1, Line-out x1
 Rear I/O Ports
Lan  Gigabit Ethernet by RJ-45 x 2, support Wake on LAN
USB  USB3.0 x 1, USB 2.0 x 1
Display Port HDMI x 1, VGA x 1
Remote Power Switch  Remote power on/off switch x 1
LEDs  Power status x 1, Storage x 1, 3G / 4G LTE x 1
12VDC Input  2-pins 12V DC input with lock connector x 1
 Others
Expansion  Mini PCIe x 1
Communication  Wireless LAN module, mini PCIe type (Optional)
Wall mount  Support VESA Mount
Mounting Mechanism  Support VESA Mount optional
Color  Black
Material  Aluminum / SECC
Certification  CE / FCC
Dimension  20 cm x 6.2 cm x 12 cm (W x D x H)
Weight  1.7 kg

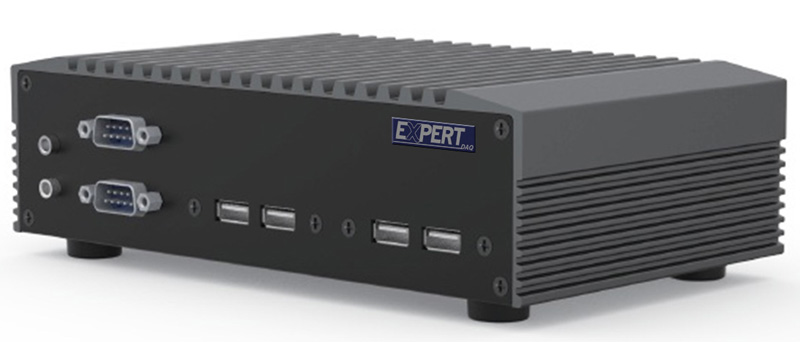

     larger photo
   User Manual
Driver

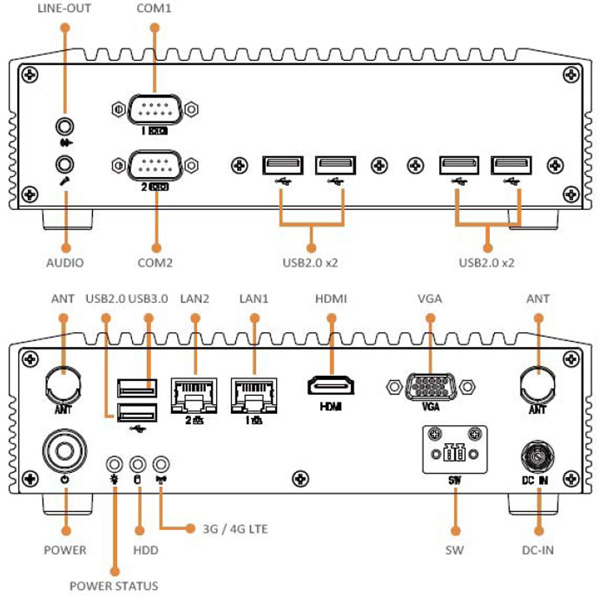

I/O interface:

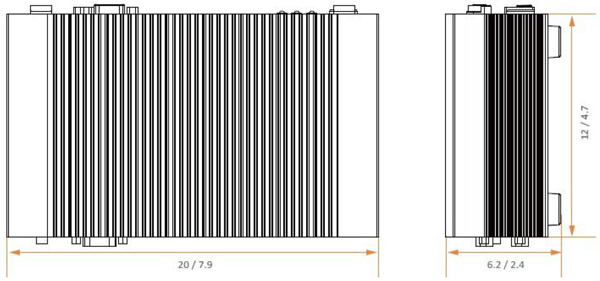

Dimension:
