EX92211                                                                   Intel® Atom x7-E3950/x5-E3940/x5-E3930 fanless BOX PC

Key Specifications/Special Features:



Intel Apollo Lake SoC processor
Fanless design
Support DVI I/O port





CPU  Intel® Atom™ x7-E3950 (Quad Core, 2M Cache, up to 2.0 GHz)
Intel® Atom™ x5-E3940 (Quad Core, 2M Cache, up to 1.8 GHz)
Intel® Atom™ x5-E3930 (Dual Core, 2M Cache, up to 1.8 GHz)
System Memory  SO-DIMM DDR3L up to 1866MHz x 1, Max. 8GB
Graphic  Intel® HD Graphics 500 / Intel® HD Graphics 505
Cooling Solution  Fanless
O.S Support Windows 10 IoT Enterprise (Entry / Value / High End)
Linux kernel 3.0+ & associated distributions
 Storage device
mSATA SSD  mSATA SSD from miniPCI socket x 1
HDD/SSD  2.5” HDD or 2.5” SSD x 1 (SATA 3.0)
 Front I/O Ports
COM1  DB9 for RS232 x 1
COM2 DB9 for RS485 x 1
DVI  DVI-I display output x1
Audio  MIC-in x 1, Line-out x1
Leds  Power status x 1, Storage x 1, 3G / 3.5G x 1
Power Button  Power on/off switch x 1
 Rear I/O Ports
Lan  Gigabit Ethernet by RJ-45 x 1, support Wake on LAN
USB  USB3.0 x 2
POE Lan RJ-45 x 1 (Built-in POE function, support IEEE 802.3at-2003, 25.5W)
COM3  DB9 for RS232 / 422 / 485 x 1
Sim  SIM Card Holder x 1
Remote Power Switch  Remote power on/off switch x 1
DC Input  3-pin DC input x 1, support +9 to 36VDC input
ANT  2 x antenna holes for optional Wi-Fi / 3G / 4G LTE antenna
Expansion  Mini PCIe x 1 for optional Wi-Fi or 3G/4G LTE
Antenna Hole  Antenna Hole x 2
Color  Black
Material  Metal
Certification  CE / FCC

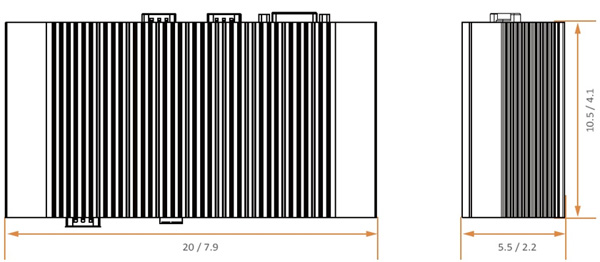

Dimension  20 cm x 5.5 cm x 10.5 cm (W x D x H)
Weight  1.9 kg
     larger photo
   User Manual

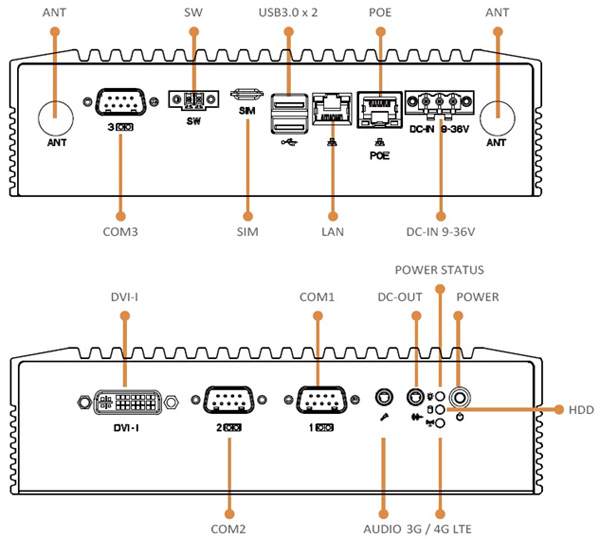

I/O interface:
