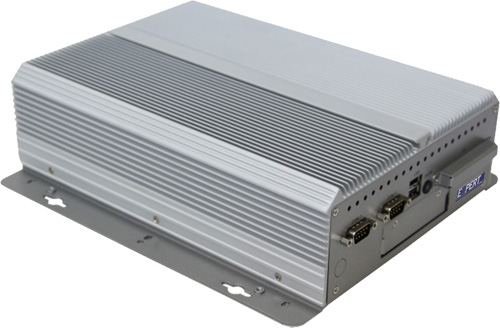

EX92664C                                                                                           Expert Fanless BOX PC (Intel Atom D2550)

Key Specifications/Special Features:


Intel Atom Processor D2550 1.86GHz , L2 Cache 1MB
Long life COMS Battery,Offer 5 years using
Large heat sink top cover for thermal dissipation
PC104 type connector instead of golden finger slot for PCI and
PCIe raiser card interface
Wide range DC power input : 9~36VDC





 System Specifications

Intel Atom Processor D2550 1.86GHz , L2 Cache 1MB

 System Chipset

Intel NM10 Express

 System Memory

1 x SO-DIMM 204pin, up to 4GB DDR3 800/1066MHz FSB

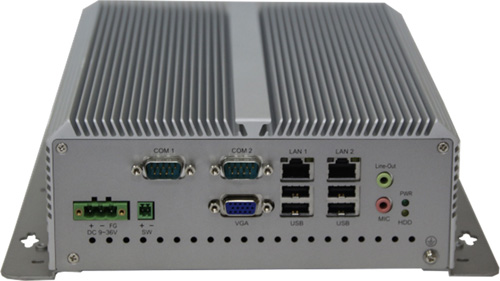

 IO Port
 USB Port  4 x USB 2.0 ports type A

 Serial/Parallel Port

3 x RS-232, 1 x RS-422/485 selectable default RS-485


1 x Line out phone jack, 1 x MIC in phone jack

 Graph  1 x VGA
 LAN  2 x GbE RJ-45
 Digital I/O





 3 pins terminal block connector

 Storage Space

 1 x 2.5" SATA

  Movable device

 1 x external CF slot


 On board expansion bus

 1 x Mini PCIe

 Expansion slot

 1 x PCI


 Power input

 9~36V DC



Sliver aluminum chassis with aluminum heat-sink

 IP rating



 Wall mounting


 268 x 195 x 101.8/268 x 240 x 104.8 (with mount kit)

 Net weight(Kgs)


 Operating temperature(C)


 Storage temperature(C)


 Storage humidity

 10 to 90% @ 40C, non- condensing


 CE/FCC class A

 Operating System Support

 System Support

Windows XP Embedded, Windows XP Professional, Windows Embedded standard 7, Windows 7 Pro for Embedded WIN CE 6.0
