EX93081A                                                                        Fanless Box PC with Intel Core 2 Quad/Duo 2 Duo Penryn CPU


Key Specifications/Special Features:



Features
8”LED backlight TFT-LCD with resolution of 800x600, 400 cd/m2
Rugged panel PC / Fan-less design / totally IP 65 rating
Intel® Atom™ Z510 1.1G, optional Z530 1.6GHz processor
1GB DDR2 SDRAM on board
DC 9-35V power input
5-wire resistive touch screen






Specifications:



System

Processor

Intel® Atom™ Z510 1.1GHz, optional Z530 1.6GHz
Chipset Intel® US15W
Memory 1GB DDR2 SDRAM on board

I/O

Outside I/O ports

1 x DC in (M12 / 3pin)
1 x Gigabit LAN (M12)
1 x COM port (M15 / 10pin)
2 x USB (M15 / 8pin)
Cables are 2m long, one side is waterproof

Wireless Module & Bluetooth Module (Optional)

Wireless LAN (Half Mini Card)
Wireless LAN + Bluetooth (Half Mini Card)
GPS Module
3.5G Module

LCD



Standard Optional High Brightness LCD

Display type

8" LED Backlight LCD 8" LED Backlight LCD
Max. Resolution 800x600 800x600
Max. Color 262K 262K
Luminance (cd/m2) 400 800
View Angle H:140° / V:100° H:150° / V:100°
Backlight Lifetime 40,000hrs 40,000hrs

Touch Sreen

Type

Resister type

Light Transmission

80%

Environmental

Operating Temp.

-20~60 C

Storage Temp.

-20~60 C

Storage Humidity

10~90% @40 C, non-condensing

Qualification

Certification

Meet CE/FCC Class A

Power Requirement

Power Input

DC 9-35V

Storage

Type

1 x Compact Flash Socket on board
1 x 2.5” SATA HDD or SSD space

Mechanical

Construction

Aluminum die-casting casing
IP Rating Totally IP 65 rating

Mounting

VESA 75x75 Mount
Color Aluminum die-casting casing / Black

Dimensions

251(W)x201(H)x64(D)mm
Net weight 4.5kgs

Order Information

EX-93081AT

8" Intel® Atom™ Z510 ultra slim steel fanless panel PC with touch screen

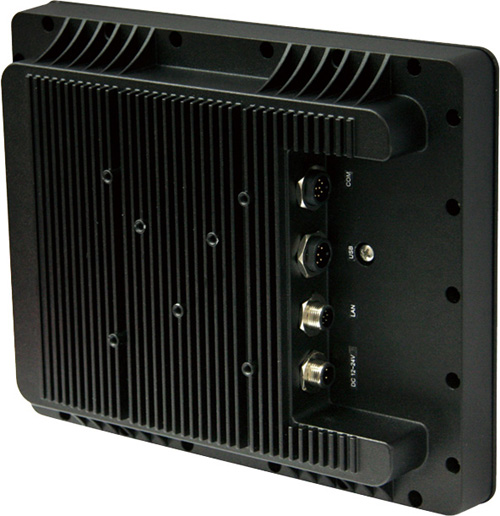

     larger photo

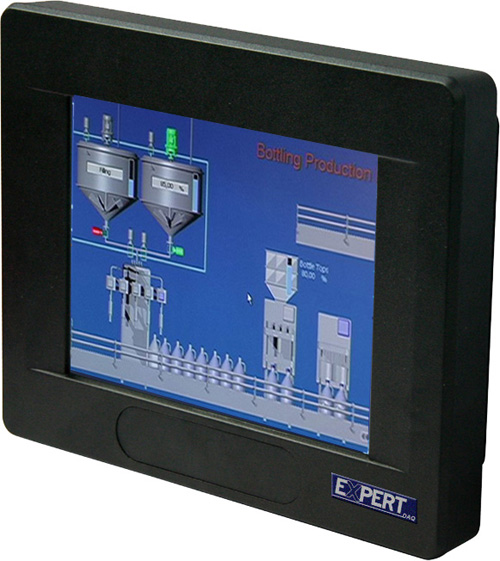

     larger photo
