EX93228A                                                                    21.5" Intel GM45 socket P Core 2 Duo industrial panel PC

Key Specifications/Special Features:


Intel® GM45 Socket P Core™ 2 Duo / Celeron® M processor
21.5" High brightness (250 cd/m2) TFT-LCD with resolution of 1920x1080
Two 200-pin SO-DIMM socket, up to 4GB DDR2 SDRAM
NEMA 4/ IP 65 compliant front panel
Sealed resistive touch screen
AC 115~230V power input





 System Specifications
 Processor  Intel® Socket P Core™ 2 Duo / Celeron ® M with 45nm processors, FSB 1066/800/667 MHz
 System Memory  2 x 200-pin SO-DIMM socket, support 800 MHz up to 4GB DDR2 SDRAM
 System Chipset  Intel® GM45 + 9M-E
 External I/O Port

 4 x USB ports
 3 x DB-9 RS-232 (COM 1~3)
 1 x PS/2 keyboard / mouse
 1 x Audio Mic-in, Line-in, Line-out
 1 x ATX power on/of f Switch
 2 x RJ-45 ports
 1 x VGA port
 1 x DVI-D port
 1 x HDMI port

 Storage  1 x CF slot (external) optional
 1 x 2.5” SA TA HDD
 1 x SATA Combo device
 Expansion Slots  1 x PCI 2.3 slot (external)
 1 x Mini-PCIe slot (Internal)
 OS Support  Windows® XP, XP Pro, XP Embedded, Windows® 7
 Display Type  21.5” TFT-LCD
 Max. Resolution  1920x1080
 Max. Color  16.7M
 Luminance (cd/m2)  250
 View Angle  H:170° / V:160°
 Backlight Lifetime  50,000hrs
 Touch Screen (Optional)
 Type  Analog resistive
 Light Transmission  80%
 Power Supply
 Power Input  AC 115~230V
 Mechanical Specifications
 Construction  Metal front panel and housing / Black
 IP Rating  Front panel IP 65 / rear side IP 30
 Mounting  VESA 100 x100 Mount
 Dimension  537(W)x342(H)x99(D)mm
 Net weight   14.8 kgs
 Operating Temperature  0~50 C
 Storage Temperature    -20~60 C
 Storage Humidity    5~90% @40 C, non-condensing
  Certificate  Meet CE/FCC Class A
 Ordering Information
 EX-93228A  21.5” Intel® GM45 Socket P Core™ 2 Duo / Celeron® M panel PC
 EX-93228AT   21.5” Intel® GM45 Socket P Core™ 2 Duo / Celeron® M panel PC with Resistive touch screen

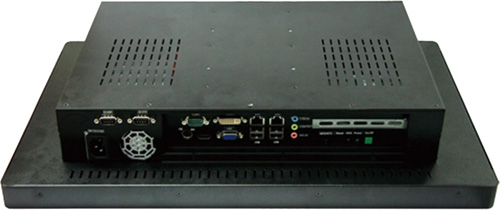

     larger photo

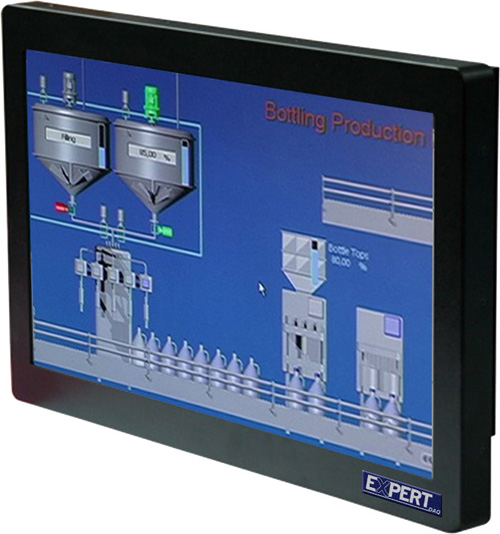

     larger photo
