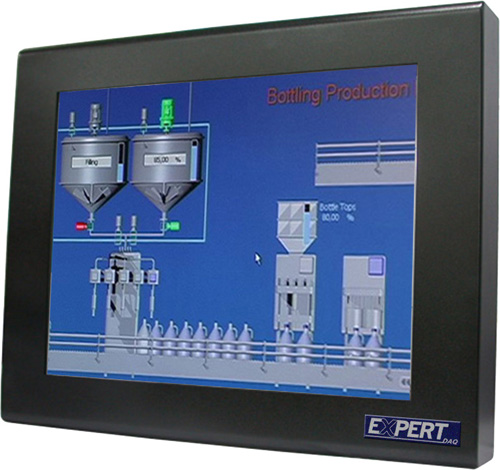

EX93585A                                                               15” Intel N270 1.6GHz Ultra slim IP 65 steel fanless panel PC


Key Specifications/Special Features:



Features
Fanless
Intel® Atom™ N270 1.6GHz processor
IP 65 compliant except I/O side
Resistive or GFG touch for option
DC 11~32V wide-range power input






Specifications:



 System Specifications
 Processor  Intel® Atom™ N270 1.6GHz processor built-in, FSB 533 MHz
 System Memory  1 x 200-pin 400/533 MHz SO-DIMM slot up to 2GB, default 1GB/533 MHz
 System Chipset  Intel® 945GSE + ICH7M

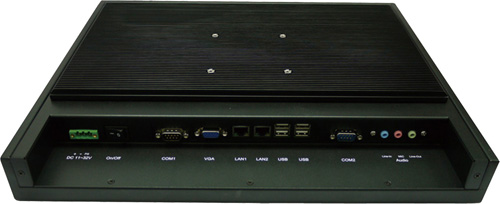

 External I/O Port

 4 x USB 2.0 connector
 2 x RJ-45 connector
 1 x DB-9 RS-232 (COM 1)
 1 x DB-9, COM2 (RS-232/422/485 selection, default RS-232)
 1 x DB-15 VGA
 1 x MIC, Line-in, Line-out
 1 x Power Switch (A TX)
 1 x 3-pin DC power input terminal

 Storage  1 x 2.5”SATA HDD
 1 x CF slot (Internal)
 Expansion Slots  None
 OS Support  Windows® XP, XP Pro, XP Embedded, Windows® 7
 LCD
 Display Type  15” TFT-LCD
 Max. Resolution  1024x768
 Max. Color  262K
 Luminance (cd/m2)  350
 View Angle  H:140° / V:120°
 Backlight Lifetime  50,000hrs
 Touch Screen (Optional)
 Type  Analog resistive (optional)
 Light Transmission  80%
 Power Supply
 Power Input  DC 11~32V
 Mechanical Specifications
 Construction  Steel front bezel and aluminum extrusion back cover
 IP Rating  IP 65 except I/O side
 Mounting  Panel / VESA 75x75 Mount
 Dimension  398(W)x316(H)x67(D)mm
 Net weight   6.9 kgs
 Environmental
 Operating Temperature  0~50 C
 Storage Temperature   -20~60 C
 Storage Humidity   10~90% @40 °C, non-condensing
  Certificate  Meet CE/FCC Class A
 Ordering Information
 EX-93585A  15” Intel® Atom™ N270 1.6GHz ultra slim IP 65 steel fanless panel PC
 EX-93585AT   15” Intel® Atom™ N270 1.6GHz ultra slim IP 65 steel fanless panel PC w/Touch screen
