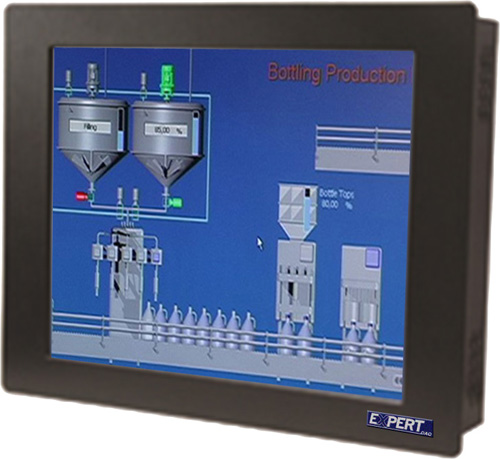

EX93717A                                                                                         17" Fanless Intel® GM45 Panel PC w/1xPCI Slot

Key Specifications/Special Features:


17” Panel PC w/Fan-less Design
Intel® GM45+ICH9M-E chipset
17” High brightness TFT w/Resolution of 1280x1024
Optional Sealed 5-wire Resistive Touch Screen , available for GFG Touch
Space for 1x2.5” SATA HDD & 1 x CF Slot (Internal)
Support 1 x PCI Slot expansion, 1x PCIe X1 for option
DC 11 – 32V wide range power input





 System Specifications
 Processor  Intel® Socket P CPU, Up to P8600 2.4Ghz
 System Memory  2 x 200-pin SO-DIMM socket, support 800MHz up to 4GB DDR2
 System Chipset  Intel® GM45 + Intel® ICH9M-E

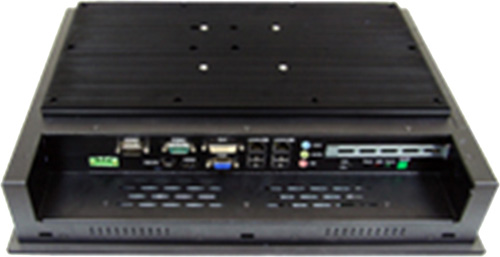

 External I/O Port

 4 x USB 2.0 connector
 2 x RJ-45 LAN connector (GbE)
 1 x DB-9 RS232 (COM 1)
 2 x DB-9 RS 232 (COM2) RS422/485 for option
 1 x DB-15 VGA Port
 1X HDMI Port
 1X DVI-D Port
 1 x PS2 Keyboard/Mouse
 1 x MIC, 1x LINE-Out, LINE-in
 1 x 3-pin DC Power input terminal

 Storage  1 x CF slot built-in (internal)
 1 x 2.5” HDD bay for SATA HDD
 OS Support  Windows® XP, XP Pro, XP Embedded, Windows® 7
 Display Type  17” TFT-LCD
 Max. Resolution  1280x1024
 Max. Color  16.7M
 Luminance (cd/m2)  350
 View Angle  H:170° / V:160°
 Backlight Lifetime  50,000hrs
 Touch Screen (For EX-93717AT only)
 Type  Analog resistive (optional)
 Light Transmission  80%
 Power Supply
 Power Input  DC 11~32V
 Mechanical Specifications
 Construction  Heavy-duty steel chassis
 Color   Black
 IP Rating  NEMA 4 / IP 65 compliant front panel
 Mounting  Panel / VESA 75x75 Mount
 Dimension  439(W)x348(H)x93.3(D)mm
 Net weight   12.8 kgs
 Operating Temperature  0~50 C
 Storage Temperature   -20~60 C
 Storage Humidity   10~90% @40 °C, non-condensing
 Certificate  Meet CE/FCC Class A
 Ordering Information
 EX-93717A  17" Slim / All in One Panel PC with 1 x PCI Slot
 EX-93717AT   17" Slim / All in One Panel PC with 1 x PCI Slot with Touch screen
