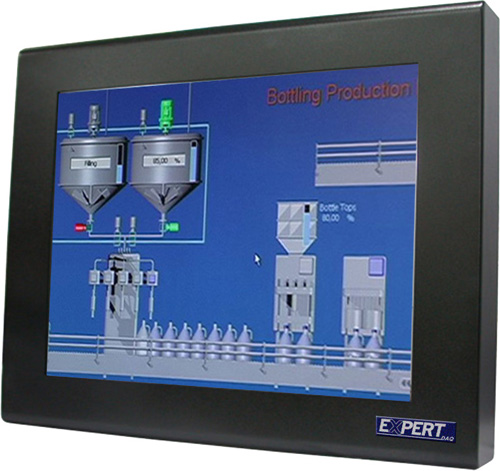

EX93785A                                                     17” Intel N270 1.6GHz ultra slim 5 sides IP 65 steel fanless panel PC

Key Specifications/Special Features:


Intel® Atom™ N270 1.6GHz processor
IP 65 compliant except I/O side
Resistive or GFG touch for option
DC 11~32V wide-range power input





 System Specifications
 Processor  Intel® Atom™ N270 1.6GHz processor built-in, FSB 533 MHz
 System Memory  1 x 200-pin 400/533 MHz SO-DIMM slot up to 2GB, default 1GB/533 MHz
 System Chipset  Intel® 945GSE + ICH7M

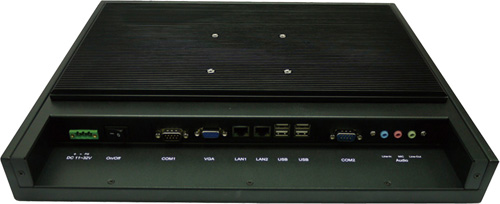

 External I/O Port

 4 x USB 2.0 connector
 2 x RJ-45 LAN connector
 1 x DB-9 RS232 (COM 1)
 1 x DB-9, COM2 (RS-232/422/485 selection, default RS-232)
 1 x DB-15 VGA
 1 x MIC, LINE-Out, LINE-in
 1 x Power Switch (A TX)
 1 x 3-pin DC Power input terminal

 Storage  1 x CF slot built-in (internal)
1 x 2.5”SATA HDD
 Expansion Slots   None
 OS Support  Windows® XP, XP Pro, XP Embedded, Windows® 7
 Display Type  17” TFT-LCD
 Max. Resolution  1280x1024
 Max. Color  16.7M
 Luminance (cd/m2)  350
 View Angle  H:170° / V:160°
 Backlight Lifetime  50,000hrs
 Touch Screen (Optional)
 Type  Analog resistive (optional)
 Light Transmission  80%
 Power Supply
 Power Input  DC 11~32V
 Mechanical Specifications
 Construction  Steel front bezel and aluminum extrusion back cover
 IP Rating  IP 65 except I/O side
 Mounting  Panel / VESA 75x75 Mount
 Dimension  432(W)x358(H)x68.7(D)mm
 Net weight   9 kgs
 Operating Temperature  0~50 C
 Storage Temperature   -20~60 C
 Storage Humidity   10~90% @40 °C, non-condensing
 Certificate  Meet CE/FCC Class A
 Ordering Information
 EX-93785A  17” Intel® Atom™ N270 1.6GHz ultra slim IP 65 steel fanless panel PC
 EX-93785AT    17” Intel® Atom™ N270 1.6GHz ultra slim IP 65 steel fanless panel PC w/Touch screen
