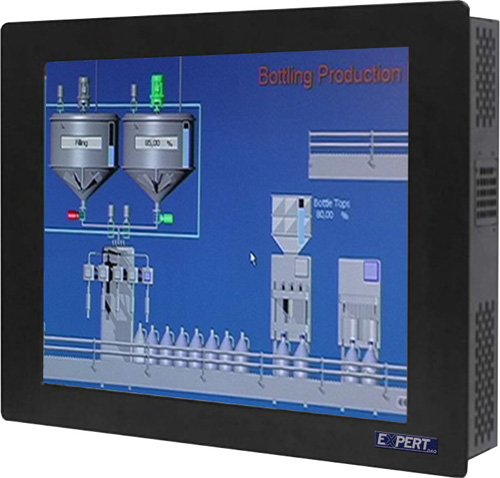

EX93914A                                                                                            Atom D2550 slim 19" Panel PC

Key Specifications/Special Features:


19" TFT-LCD, Resistive touch option
Intel D2550 CPU support
Fanless Design
Support 1 x PCI or PCIe x1 slot
Wide range DC 9~32V





 System Specifications

 Intel Atom Processor D2550 (1M Cache, 1.8 GHz)

 System Chipset

 Intel NM10 Express

 System Memory

 2 x DDR3 SO-DIMM slot, up to 4GB 800/1066 MHz (D2550)



 USB Port    4 x USB 2.0 ports
 Serial/Parallel Port    1 x RS-232/422/485 selectable default RS-232 DB9
 1 x RS-232 DB9
 1 x RS-422/485 selectable default RS-485 DB9
 1 x RS-232 DB9 for option
 Audio    Mic-in/Line-out phone jack
 Graph  1 x VGA
 LAN   2 x GbE RJ-45
 Graphics   Integrated Intel® HD Graphics controller
 Digital I/O

 1 x 8 pin 6 GPIO/VCC/GND terminal block connector for option



 Membrane control



 1 x 3pin DC power connector, 1 x Rocker switch for power on/off,
 1 x 2pin remote power switch, 2 x LED light for power and HDD indication
 Storage Space

 1 x 2.5" SATA2

  Movable device

 1 x External CF slot


 On board expansion bus

 1 x Mini PCIe full size

 Expansion slot

 1 x PCI slot default1 x PCIe x1 slot option

 Display Type

 19” TFT-LCD

 Max. Resolut ion



 Max. Color


 Luminance (cd/m2)


 View Angle

 H:170° / V:170°

 Backlight Life time




 Touch Screen(Option)

 Resistive (optional )

  Interface   USB

 Light Transmission


 Power Input



 Black steel front bezel, black steel back cover with aluminum heat-sink

 IP rating

 Front bezel IP65


 Panel mounting, VESA 75 x 75


 484 x 400 x 94.3

 Net weight(Kgs)


 Operating temperature(°C)

 0~50(with HDD), -20~60 (with Industrial SSD or CF)

 Storage temperature(°C)


 Storage humidity

 10 to 90% @ 40°C, non- condensing


 CE/FCC class A

 System Support

 Microsoft Windows 7 pro for embedded, Windows embedded standard 7
