EX98613                                                                                            Intel® Socket G Core™ i5/i7


Key Specifications/Special Features:



Fanless Design
Support Wide Range DC (10 ~ 28V) Power Input
Support Serial Port with 5V/12V Power Output
Support Various Video Interfaces (Analog RGB, DisplayPort, DVI)
Support Outside Accessible CFast Slot
Support GSM/UMTS, SIM Card for Connection
Support DDR3 SO-DIMM up to 8GB
Expansion Slots (1 x PCIe x16, 1 x Mini-card, 1 x SIM Socket) & Rich Onboard I/O
Rugged Design for Shock/Vibration Protection
Simple Installation/Maintenance
Intel® SSD Compatible





Specifications:



 System Specifications
 Processor  Intel® Socket G Core™ i5/i7 series processors
 System Chipset  Intel® QM57
 System Memory  2 x 204-pin Dual Channels DDR3 SO-DIMM Sockets up to 8GB at 800/1066MHz
 Graphics   Integrated Intel® HD Graphics controller
 ATA  2 x Serial ATA ports with 300MB/s HDD transfer rate
 LAN Chipset  2 x Intel R WG82574IT Gigabit Ethernet controllers
 Watchdog Timer  1~255 levels reset
 I/O
 Serial Port   1 x DB-44 female connector
 Support 4 x RS-232 ports with 5V/12V Power Output
 (COM3, 4 is RS-232/485 selectable)
 USB Port   8 x USB 2.0 ports
 LAN   2 x RJ-45 ports for Gigabit Ethernet
 Video Port    1 x DB-15 female connector for Analog RGB
 1 x Display port
 1 x DVI
 Selectable Port   DVI by default, which can be changed to DIO or LPT
 1 x 16-bit digital I/O, 8 in/8 out
 SPP/EPP/ECP mode for LPT
 Audio   Mic-in/Line-out (6W pre-amplified)
 KB/MS   1 x 6-pin Mini-DIN for Keyboard and Mouse
 GSM/UMTS   Up to HSUPA 3.75G (optional Mini-card)
 Expansion Bus   1 x PCIe x16 slot w/ riser card
 1 x Mini-card slot
 1 x SIM socket
 Environmental
 Operating Temperature  -20 ~ 55°C (-4 ~ 131°F), w/ air flow designed
 Storage Temperature   -40 ~ 85°C (-40 ~ 185°F)
 Relative Humidity   10 ~ 95% @ 40°C (non-condensing)
 Vibration   3 Grms/5~500Hz/random operation
 Shock & Crash   Operating 20G (11ms), Non-operating 40G with HDD
 Operating 40G (11ms), Non-operating 60G with CF/SSD
 Crash 80G (11ms)
 Qualification
 Certification   Certification CE, FCC
 Power Requirement
 Power Input   DC 10~28V input (w/ 4-pin DC input terminal block combine remote power on/off switch)
 Power Consumption   120W (Max.)
 Storage
 Type   2 x 2.5" drive bay for HDD/SSD w/ 9.5mm height limit
 1 x CFAST Socket which can be outside accessible
 Mechanical Specifications
 Construction  Aluminum alloy
 Mounting  Support wall-mounting/Din rail mounting
 Net Weight  4.2 kg (9.24 lb)
 Dimension (WxDxH)  195 x 268 x 90 mm (7.68" x 10.55" x 3.54")

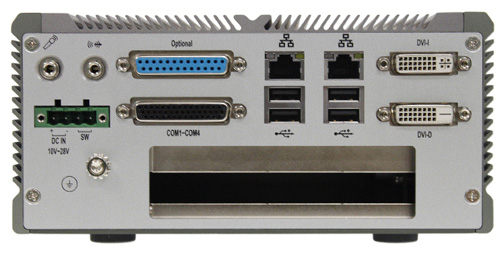

     larger photo

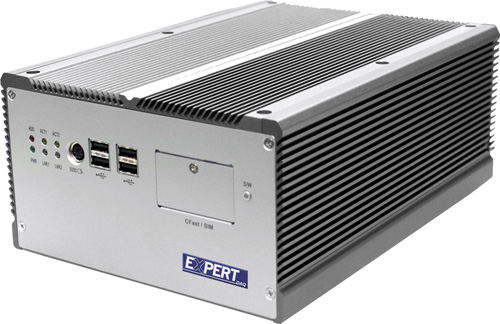

     larger photo
