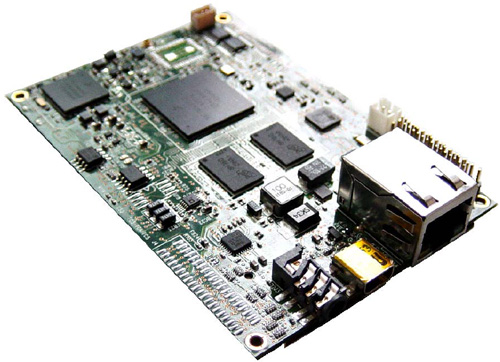

EX9162A                                                                                                                            ARMA8 single Board


Key Specifications/Special Features:







Feature
ARM A8 800MHz CPU, 256KB cache, 256MB RAM, 1GB Flash, 24-bit LCD, Multimedia with H.264/H.263/MPEG4 Codec, OpenGL ES2.0, OpenVG 1.1, TV, LAN, Audio, USB2.0, SD, COM, CAN, GPIO, Camera interface, Touch, 5~36V DC-IN; Optional 2nd LCD for Dual Display, Keypad, WiFi+Bluetooth






 ARM Cortex A8 800MHz CPU with Neon media accelerator
 Cache  32KB instructions cache and 32KB data cache (L1),256KB cache (L2) built in CPU
 Dram  256MByte DDR2 SDRAM soldered on board
 Flash  1Gbyte Flash soldered on board
 Multimedia with H.264/H.263/MPEG4 Codec & OpenGL ES2.0, OpenVG 1.1  OpenGL ES 2.0 @ 27M Tri/sec and OpenVG 1.1 Hardware accelerators
 Multi-format Hardware Codec

 Encoder: D1 30fps (H.264 BP, H.263 P0/P3, MPEG4 SP, MJPEG Baseline)

 Decoder; HD720P 30fps (H.264 BP/MP/HP, H.263 P0/P3, MPEG4 ASP, MPEG2 MP, VC-1 SP/MP/AP, DivX 3/4/5/6, RV10 8/9/10, MJPEG Baseline)
 HD720P TV-out  Support Y/C Video out and Y , C S-Video out
 LCD:  Support 24 bit TFT LCD up to WXGA, optional 2nd 18-bit TFT LCD
 Optional LVDS / CRT daughter board
 Ethernet  100/10M Ethernet, Support RJ45 connector (UPT)
 Bus type  Expansion EIM bus and CSPI bus for extension board
 Audio  Audio on board
 USB 2.0  USB OTG and USB Host (ULPI)
 SD  SD Card socket on board,
 Keypad:  Extension board
 COM Port  RS232 x 3 and RS485 x
 CAN  CAN bus on board,
 GPIO  16-bit
 Camera  up to 8Mpixel @ 15fps, up 133Mpixel/sec
 Touch  4 way touch control
 WIFI + Bluetooth  WIFI 802.11 b/g/n, Bluetooth 2.0/3.0
 Power Requirement  5 ~ 36V power, support 5V Battery
 Dimension  94mm x 65mm SBC
 Operating Temperature  -20 to 70ĒJ (-4 ~ 158ĒK), optional -40 to 85ĒJ
