Embedded Board Series

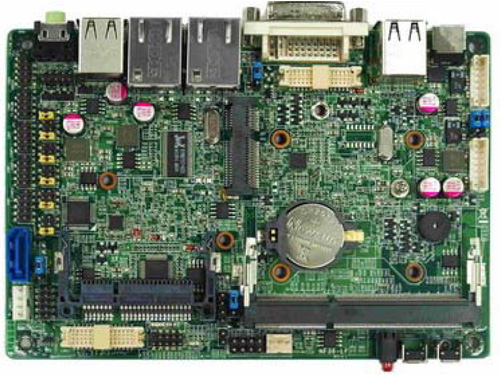

EX9890                                                        Intel ATOM N2600 / N2800 CPU 1 x half-size mini-PCIe socket 3.5” SBC


Key Specifications/Special Features:





Intel ATOM N2600 / N2800 CPU
Intel NM10 Express Chipset
Integrated Intel 3600 / 3650 GPU
Support DDR3 800, up to 2GB
4 x COM Ports
2 x Gigabit LAN
Support Dual Display
Support 24bit LVDS + 18bit LVDS
3.5” Form Factor






 CPU

EX-9890

Intel ATOM Dual Core N2600 CPU, 1.6GHz, CPU TDP 3.5W

Optional EX-9890-2800

Intel ATOM Dual Core N2800 CPU, 1.86GHz, CPU TDP 6.5W

 Memory

EX-9890

1 x SODIMM DDR3 800, up to 2GB

EX-9890-2800

1 x SODIMM DDR3 800, up to 2GB

Chipset

Intel NM10 Express Chipset

Power Management

ACPI S3 Compliant, support Power saving mode

SATA Interface

1 x SATA ll (3GB/s) Device Support

1 x CFast Support

VGA Interface

Integrated Intel GMA3600/3650 Graphic Engine

LVDS

Support 18bit Single Chanel LVDS (LVDS1) & 24bit Dual Channel

LVDS (LVDS2, via Chrontel IC)

Audio

VIA VT1705 6-CH HD Audio Codec

2 x LAN

Realtek RTL8111E-VL-GR Gigabit LAN x 2

Extension Bus

1 x half-size mini-PCIe socket

COM x 4

1xRS-232/422/485 + 3xRS-232

Internal I/O Port

2xUSB headers for 3 USB 2.0 Port, 1xCPU Smart Fan, 2xDC Fan

Connectors, 2xLVDS, 1xGPIO

External I/O Port

4xUSB 2.0 Connectors 1XDVI-I Connector, 2xRJ45 Connector,

1xAudio I/O

BIOS

Award 16MB SPI Flash ROM

Power Requirement

12V DC-in

Dimension

148 mm x 102 mm

Temperature

Operating within 0~60°C
