Key
Specifications/Special Features:
Intel ATOM
N2600 / D2550 / N2800 CPU
INTEL NM10
Express Chipset
Integrated
Intel 3600 / 3650 GPU
Support DDR3
800, up to 2GB
4 x COM Ports
2 x Gigabit
LAN
Support Dual
Display
Support 24bit
LVDS + 18bit LVDS
Single +12V DC-IN, Optional +9 ~
+36V
|
CPU
|
|

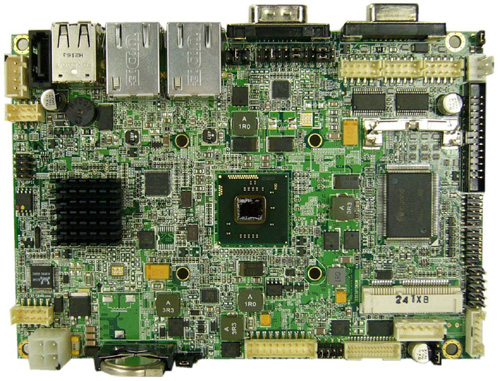

EX-9899N
|
Intel ATOM Dual Core N2600 CPU, 1.6GHz, CPU TDP 3.5W
|
|
EX-9899D
|
INTEL ATOM Dual Core D2550 CPU, 1.86GHz
|
|
Memory
|
1 x SODIMM DDR3 800, up to 2GB
|
|
Chipset
|
Intel NM10 Express Chipset
|
|
Power Management
|
ACPI S3 Compliant, support Power saving mode
|
|
SATA Interface
|
1 x SATA ll (3GB/s) Device Support
1 x CFast Support
|
|
VGA Interface
|
Integrated Intel GMA3600/3650 Graphic Engine
|
|
LVDS
|
Support 18bit Single Chanel LVDS (LVDS1)
& 24bit Dual Channel
LVDS (LVDS2, via Chrontel IC)
|
|
Audio
|
Realtek ALC662 HD Audio Codec
|
|
2 x LAN
|
Realtek RTL8111E Gigabit LAN x 2
|
|
Extension Bus
|
1 x mini-PCIe socket
|
|
COM x 4
|
1xRS-232/422/485 + 3xRS-232
|
|
Parallel x 1
|
|
USB 2.0 x 4
|
|
PS/2 KB / Mouse
|
|
DIO:
|
4 IN / 4 OUT
|
|
BIOS
|
AMI
|
|
Power Requirement
|
12V DC-in; Optional +9 ~ +36V
|
|
Dimension
|
146 mm x 102 mm
|
|
Temperature
|
Operating within 0~60 °C
|
|
|
