Key
Specifications/Special Features:
Intel Atom
Processor D2550 1.86GHz , L2 Cache 1MB
All solid
capacitors motherboard
Long life
COMS Battery, Offer 5 years using
Large heat
sink top cover for thermal dissipation
Wide range DC power input : 9~36VDC
Specifications
(ExpertDAQ System):
|
LCD Panel Specification |
|
Viewable Size Image
|
12.1" INCH
|
|
Active Display Area
|
246.0 (H) x 184.5 (V)
|
|
Pixel Pitch
|
0.3075 (H) x 0.30754 (V)
|
|
Resolution
|
800X3(rgb)X 600
|
|
Contrast Ratio
|
600:1 (typ.)
|
|
Display Color
|
16.2M / 262K colors
|
|
Brightness
|
400 cd/m2 (typ.)
|
|
Viewing Angle
|
-80°~80° (H); -50° ~60° (V)
|
|
Recommend Resolution
|
800X600 @60Hz, 75Hz
|
|
Power Consumption
|
35w typical, normal operation
|
|
Touch (Optional)
|
5 -wires Resistive touch
|
|

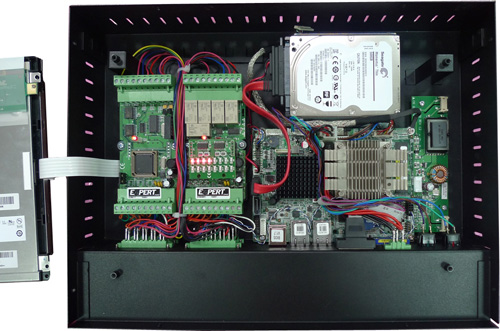

System Specification |
|
Digital I/O
|
16 Ch digital Input; 16 Ch digital output(ExpertDAQ modules)
|
|
USB
|
Embedded 6 * USB 2.0/1.1(External USB*2)
|
|
HDD Interface
|
SATA 3Gb/s
|
|
Operating Temperature
|
-20 ~ 60°C
|
|
I / O Interface
|
2*USB 2.0/1.1 ports
2*RJ-45 ports
1*VGA
2*Serial port
1* 12V DC-IN JACK
4* TB for DIO(AIO optional)
1* Power
1* Reset |
Specifications
(Main Board):
|
System Specification |
|
Processor
|
Intel® dual core Atom™.D2550 1.86GHz processor
Intel® dual core Atom™ N2800 1.86GHz processor
|
|
Chipset
|
INTEL® NM10
|
|
BIOS
|
UEFI BIOS
|
|
Memory
|
On-board DDR3 1066MHz 2GB SDRAM
|
|
Graphic
|
Graphic core speed 640MHz for D2550/N2800
|
|
Display Interface
|
1*VGA(up to 1920x1200@ 60HZ)
Single-channel 24-bit LVDS, resolution up to 1440X900@60Hz |
|
Ethernet
|
Dual GbE by Realtek RTL8111E, LAN1 with ASF 2.0
|
|
I / O Interface
|
3 x RS-232
1 x KB/MS
2 x SATA 3Gb/s
6 x USB 2.0
1 x RS-232/422/485 with Auto Flow control |
|
Audio
|
Realtek ALC662 HD Audio Codec
|
|
Digital I/O
|
8-bit digital I/O, 4-bit input/4-bit output
|
|
Expansion
|
1 x PCIe Mini card slot(Half/ Full)
|
|
Watchdog Timer
|
Software programmable
supports 1~255 sec.
system reset by Super I/O |
|
Power Supply
|
12V input only
AT/ATX mode select
4-pin (2x2) power connector |
|
Super IO:
|
Fintek F81866
|
|
Fan Connector
|
1 x 3-pin CPU fan, 1 x 3-pin system fan
|
|
Power Consumption
|
1.53A @ 12V (Intel R
Atom™
D2550 with 1GB 1066MHz DDR3)
|
|
Operating Temperature
|
-10 °C
~ 60°C
|
|
Operating Humidity
|
5% ~ 95%, non-condensing
|
|
Dimensions
|
146 mm x 102 mm
|
|
Weight
|
GW: 650g/NW: 170g
|
Order
information:
1.DI*16 Ch(EX9053) +DO*16Ch(EX9043) (default)
2. DI+DI/DO+DO/DI+AI/DI+AO/DO+AI/DO+AO (Spec. Select by user)
3. DIO/AIO ModBus optional ;GSM/GPRS/Wireless LAN optional
4. License of ExpertView of SCADA
5. 15”/17”/19” ready for select
6. OEM/ODM Welcome
|
|
