EX99550-DAQ                                                                                                                        19" ExpertDAQ system


Key Specifications/Special Features:



19“ LCD Touch with Intel® BayTrail-D SoC Processor, J1900
 Flat-bezel Panel PC with Touch Screen and Intel® Atom™ CPU
USB 2.0/3.0, Dual RJ-45 Gigabit LAN, Audio(internal)
 RS-232/422/485, RoHS Compliant , IP65 Protection
 DI/DO/AI/AO(Optional: EX9000/ M series)
 Utility of EX-9000 & DEMO kit & DLL ready,
ExpertView of SCADA (DEMO kit included w/ EX9000 driver deady)









Order information:




Optional: 12“/15“/17“/21“ with Digital/ Analog IO
CPU/ Main Board
Certification of Spply(for Rail Way/ Health Care/ Marine/ Military..)
Wall Mount/ VESA Mount kit

Accessories: Power adaptor/ cord
CD of EX9000/ Modbus (Utility/ Demo/ DLL/ Library/ Manual/
Wire Connection/ Block Diagram)
ExpertView of SCADA (DEMO kit included w/ EX9000 driver deady)

OEM/ ODM: Customized

Relative Products: IIOT/ i – Cloud (Demo Kit ready)
     larger photo
     larger photo
     larger photo
   User Manual
Driver
Dimension



Specifications (Main Board):



 System Specification

 Processor

Intel® BayTrail-D SoC Processor, J1900

 Memory

 4.0 GB DDR3 SDRAM SO-DIMM (system max.   4 GB)
 Expansion slots 2*Mini PCI-E
 Storage 1 * SATA HDD

 Ethernet

2 * RTL8111E PCI-EVL Gigabit LAN
 Max.Resolution 1280 x 1024 (XGA)
 Brightness  250 cd/m²
 Contrast Ratio 1000:1
 LCD Color     16.2M
 Pixel Pitch (mm)

0.294 (H) x 0.294(V)
 Viewing Angle (H-V) 170 (H) / 160 (V)
 Backlight MTBF

30,000 hours
 Touch Screen 5-wire resistive type

 I/O

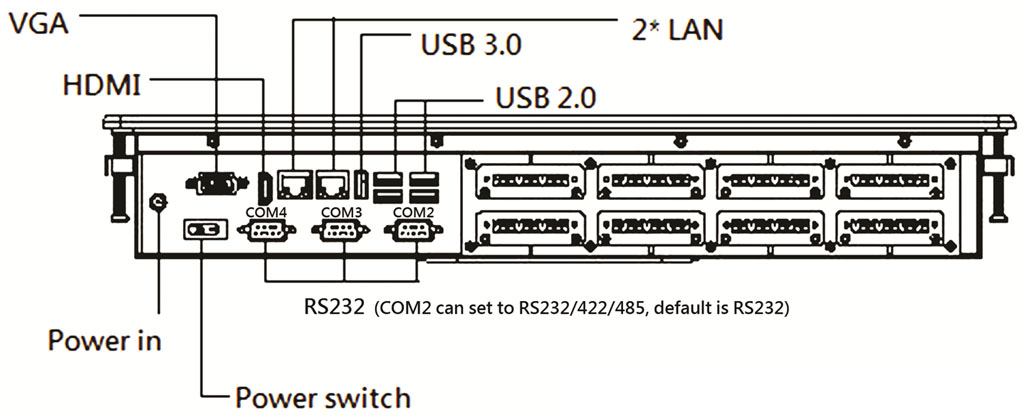

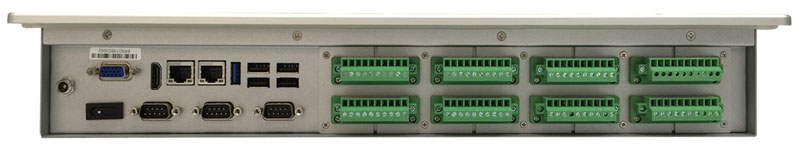

 2 x DB-9 RS-232 ports / 1 x DB-9 RS-232/422/485 port
1 x VGA connector
2 x RJ 45 LAN
1 x Power switch
12 V DC in

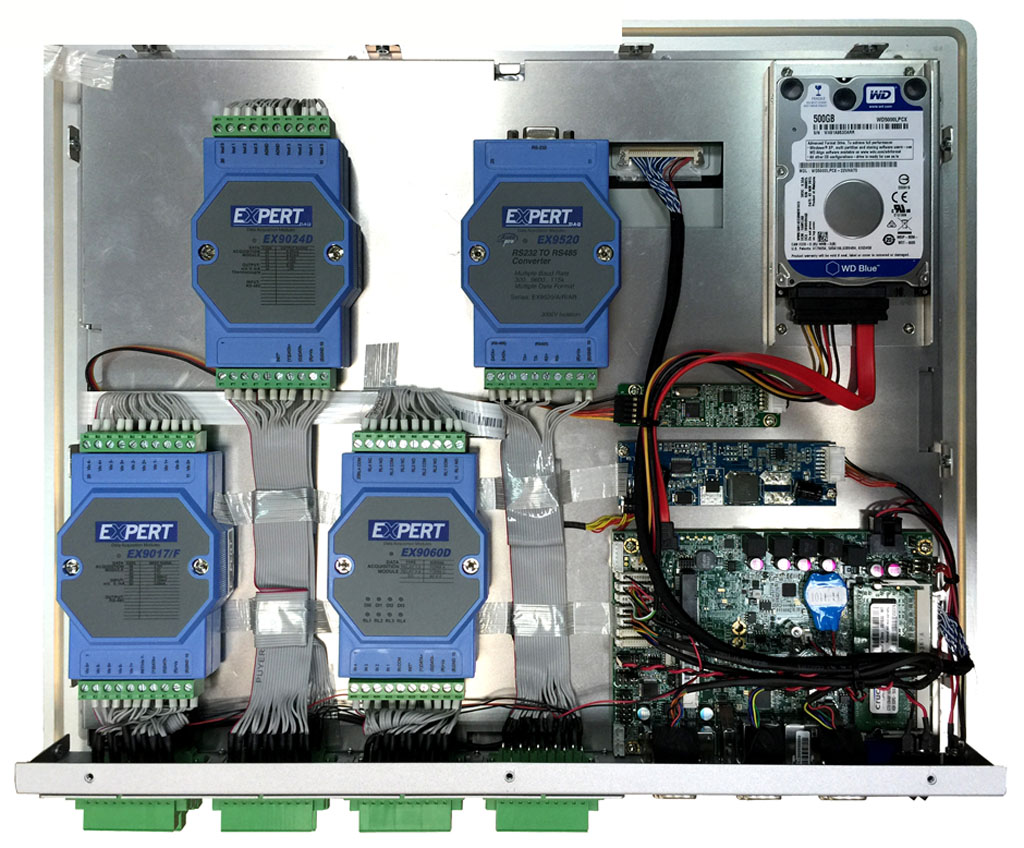

8 x Terminal Block (10pin) ready for DI & DO & AI & AO
4 x USB2.0, 1x USB3.0
1 x HDMI

 Power Supply

 Input: 100 VAC ~ 240 VAC @ 50 Hz / 60 Hz  / DC jack:12 V/ 5A

 Operating Temperature

-20°C ~ 50°C
 Storage Temperature -30°C ~ 80°C
 Humidity 5% to 95%, non-condensing

 Construction Material

Aluminum (front panel)/ Silver Color

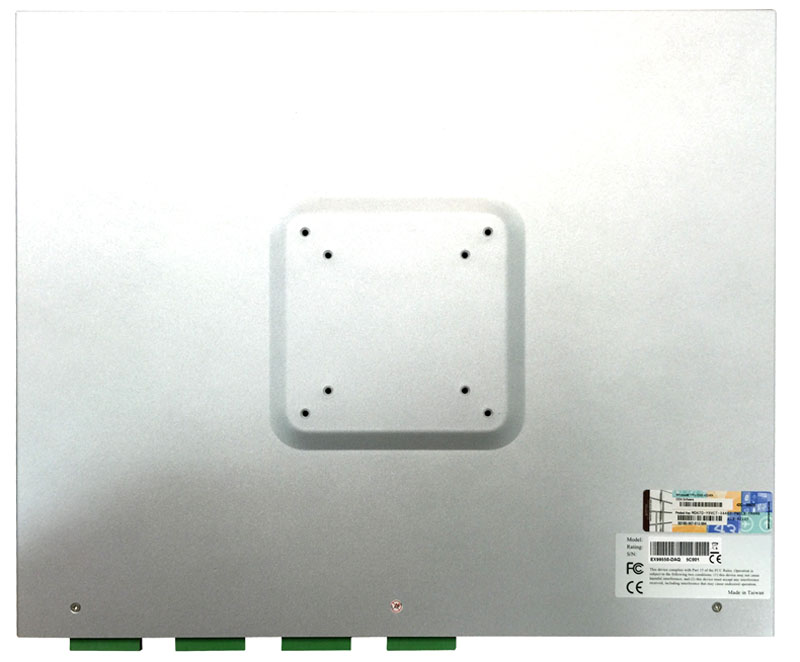

 Mounting Wall mount (VESA 100 mm x 100mm)
 Dimension 448 mm x 373 mm x72.5 mm
 Weight 10 kg / 13 kg
