Features:
■
Multi mode

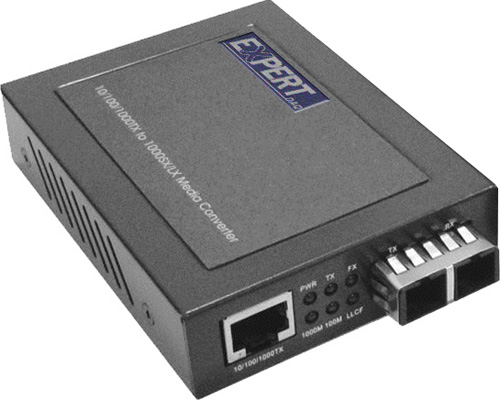

EX9543G-MM/ SM Gigabit media converter supports two types of
media for network connection such as 10/100/1000Base-T and
1000Base-SX/LX fiber.
It is automatic for either full or half duplex mode. Full-duplex
cabling provides bandwidth of up to 2Gbps and allows for
transmission distance up to 550m over multi-mode fiber or up to
80 km over single-mode fiber.
EX-9543G-MM/ SM supports Link Loss Carry Forward (LLCF)
bi-direction Function, The Converter can detect and indicate the
remote-side copper port or fiber port Link fails, and force TP
and Fiber links down on both side, and when the Linkage was
resumed, it will link again automatically.
The media converter is used to convert one type media signal to
other type equivalent that allows two types of segments to be
connected easily and inexpensively. The Converter can be used as
a standalone unit or as a slide-in module to the 19" converter
rack (up to 10 units) for use at a central wiring closet.
| Standard
Compliance |
IEEE 802.3z AB
1000Base-T, 1000Base-SX/LX |
| Data Transfer
Rate |
2000Mbps for
Full-duplex at 1000Mbps speed |
| Cable |
UTP Cable :
Cat. 5/ Cat.5e/ Cat. 6 cable |
| Fiber Cable |
1000SX：50/125,
62.5/125μm multi-mode
1000LX：9/125 or 10/125μm single-mode |
| Flow Control |
The TX port support
Auto-negotiation for 10/100/1000M and Auto-MDI/MDIX
capability.
TX:with auto select full /
haft DUPLEX
FX:with auto select full /
haft DUPLEX but it need the fiber transceiver which was
depends the end device duplex type |
| Led Indicator |
Power, speed,
FX Link/Act, TX Link/Act and, LLCF.
FX LINK, FX FDX, TP LINK, TP FDX, ACT, PWR |
| Power
Requirement |
1.5A@5VDC |
| Ambient
Temperature |
0~40°C |
| Humidity |
5~90% |
| Dimension |
22(H) x 125(W)
x 75 mm (L) |
| Emissions |
FCC Part 15 of
Class A & CE approved |
|
|
