EX9000/EX9000-Modbus Series




EX9543G-SM-M(SC/ST)                                                      10/100/1000Base to Fiber, Multi mode, SC/ST connector


Key Specifications:



The Gigabit Media Converter are industrial media converters provide media conversion between 10/100/1000Base-T(X) and 100FX/1000Base-X fiber optical interface. The Gigabit Media Converter is rigid IP-30 housing design and supporting an operating temperature of -40 to 70°C. Therefore, The Gigabit Media Converter is reliable media converter for industrial application.





Features:

■  Gigabit Media Converter supports 1 port 1000Base-X single-mode
 ■  Gigabit Media Converter provide relay output to carry capacity of 1A at 24VDC for power alarm output
 ■  Wide operating temperature range from -40°C to 70 °C
 ■  Rigid IP-30 housing design
 ■  DIN-Rail and panel mounting enabled



Interface 10/100/1000Base-T(X) & 1000Base-LX
Physical Ports
  10/100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX *1
  1000Base-LX Single-mode Port (10KM,1310nm,SC connector)
*1
Technology
Ethernet Standards IEEE
IEEE
IEEE
IEEE
802.3 for 10Base-T,
802.3u for 100Base-T(X)
802.3ab for 1000Base-T
802.3z for 1000Base-X
LED IndIcators
Power / Ready Indicator Green: Power LED x2
Fault Indicator Yellow: Indicate power failure
10/100/1000TX RJ45 Port Indicator Green for port Link/Act.Amber for 100Mbps indicator
1000X Port Indicator Green for port Link/Act
Fault contact
Relay Relay output to carry capacity of 1A at 24 VDC
Dip switch Relay output function enable / disable power failure alarm
Power
Input power Dual 12~48 VDC power inputs in 6-pin terminal block
Power consumption (Typ.) 3.5 Watts
Reverse polarity protection Present
Overload current protection Present
Physical Characteristic
Enclosure IP-30
Dimension (W x D x H) 26.1 mm(W) x 95 mm(D) x 144.3 mm(H)
Weight (g) 400 g
Environmental
Storage Temperature -40 to 85 °C (-40 to 185°F)
Operating Temperature -40 to 70 °C (-40 to 158°F)
Operating Humidity 5% to 95% Non-condensing
Regulatory Approvals
EMI FCC Part 15, CISPR (EN55022) class A
EMS EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
EN61000-4-8,
EN61000-4-11
Shock IEC60068-2-27
Vibration IEC60068-2-6
Free Fall IEC60068-2-32
Safety EN60950-1

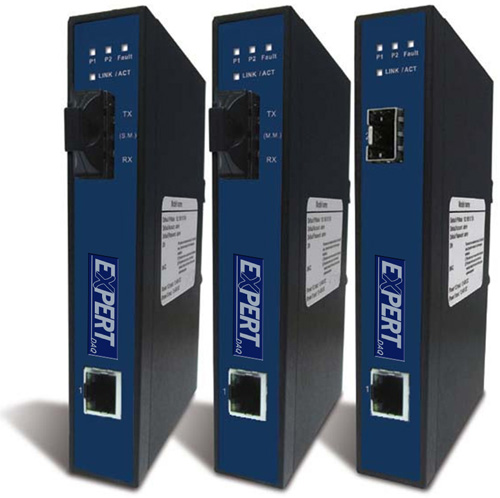

     larger photo
