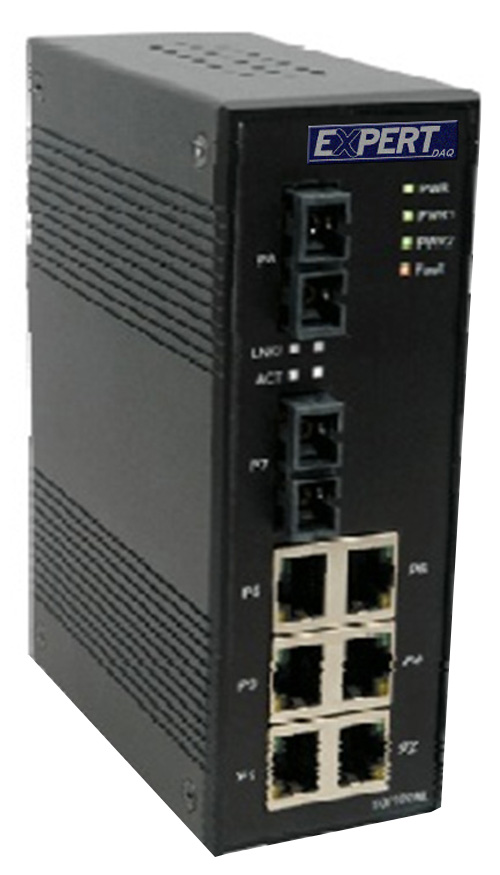

EX9973FD            8-Port unmanaged Ethernet Switch with 6* 10/100Base-TX + 2*100Base-FX port (Industrial Link)


Key Specifications:



EX-9973FD series are unmanaged Ethernet switches with 6x10/100Base-T(X) and 2x100Base-FX ports. EX-9973FD supports redundant power input, relay output alarm and surge protection. In addition, the wide operating temperature range from -40°C to +75°C can satisfy most of operating environment.



Features:



■  Triple redundant DC power inputs of terminal block and power jack
■  Supports auto-negotiation and auto-MDI/MDI-X
 ■  Supports store and forward transmission
 ■  Support flow control
■  Warning system by relay output
■  Rigid IP-30 housing design
 ■  DIN-Rail and panel mounting enabled





     larger photo
   User Manual


Driver
     Pin Assignment
Block Diagram
10/100Base-T(X) Ports in RJ45 Auto MDI/MDIX 6
100Base-FX Multimode Ports (2km, 1310nm, SC connector) 2 (EX-9973FD-2)
100Base-FX Singlemode Ports (30km, 1310nm, SC connector) 2 (EX-9973FD-30)
Ethernet Standard IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX and 100Base-FX
IEEE802.3x Flow Control and Back Pressure
Mac Address 8192 MAC address table
Processing  Store-and-forward
Relay Relay output to carry capacity of 1A at 24VDC
LED Power indicator : Power LED * 3 (Green)
Fault indicator : PWR 1 or PWR 2 failure occurred (Amber)
10/100TX RJ45, 100FX Port : Link/Act (Green), Duplex/Collision (Amber)
Redundant Input Power Triple DC inputs. 12~48VDC on 7-pin terminal block, 12~45VDC on power jack
Power Consumption 8 Watt
Overload Current Protection Present
Reverse Polarity Protection Present on terminal block
Enclosure IP-30

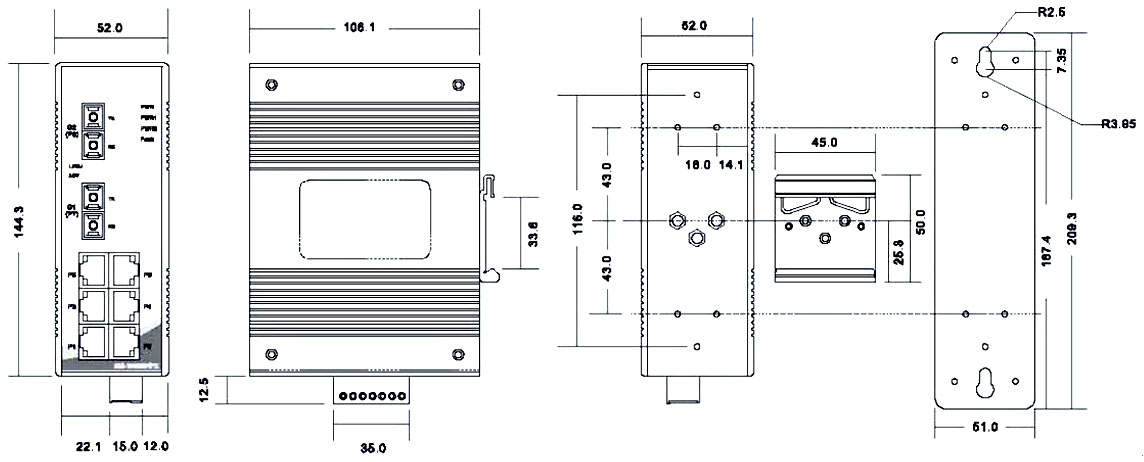

Case Dimension 52mm (W) x 106.1mm (D) x 144.3mm (H)
Weight 680 g
Operating Humidity 5% ~ 95% (Non-condensing)
Operating Temperature -40°C~+75°C
Storage Temperature -40°C~+85°C
Installation DIN Rail and Wall Mount Design
