EX9973FM            8-Port Managed Ethernet Switch with 6* 10/100Base-TX + 2*100Base-FX port (Industrial Link)


Key Specifications:



EX-9973FM series are managed Redundant Ring Ethernet switches with 6x10/100Base-T(X) and 2x100Base-FX ports. With complete support of Ethernet Redundancy protocol, R-Ring (recovery time < 10ms over 250 units of connection), and MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. In addition, the wide operating temperature range from -40°C to +75°C can satisfy most of operating environment. Therefore, the switch is one of the most reliable choice for highly-managed Fiber Ethernet application.



Features:



■  Fast Redundant Ethernet Ring : R-Ring (recovery time < 10ms over 250 units of connection)
 ■  MSTP/RSTP/STP (IEEE 802.1s/w/D)
 ■  SNMP v1/v2c/v3 support for secured network management
 ■  Rigid IP-30 housing design
 ■  DIN-Rail and panel mounting enabled

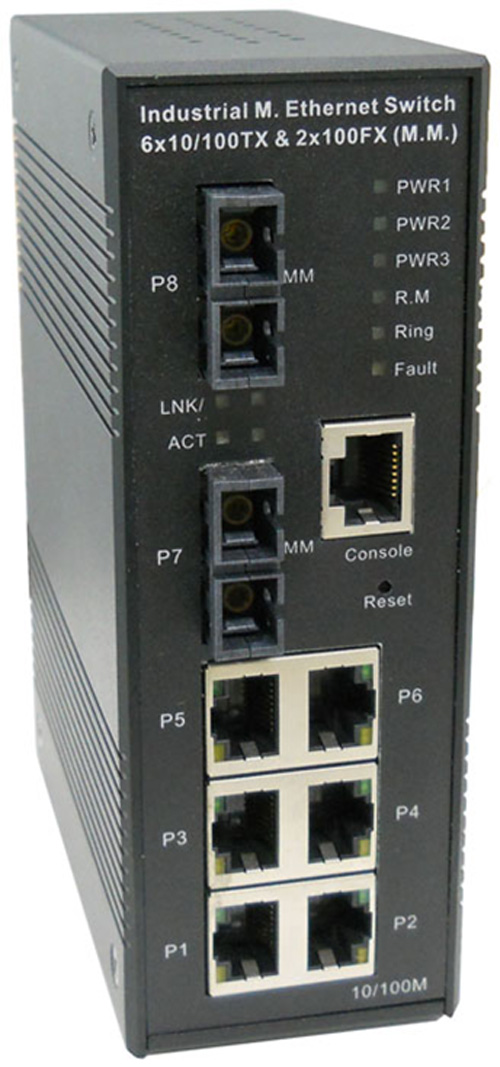

     larger photo
   User Manual


Driver
     Pin Assignment
Block Diagram
10/100Base-T(X) Ports in RJ45 Auto MDI/MDIX 6
100Base-FX Multimode Ports (2km, 1310nm, SC connector) 2 (EX-9973FM-2)
100Base-FX Singlemode Ports (30km, 1310nm, SC connector) 2 (EX-9973FM-30)
Ethernet Standard IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX and 100Base-FX
IEEE802.3x Flow Control and Back Pressure
IEEE802.3ad for LACP (Link Aggregation Control Protocol)
IEEE802.1d Spanning Tree
IEEE802.1w Rapid Spanning Tree
IEEE802.1s for MSTP (Multiple Spanning Tree Protocol)
IEEE802.1p Class of Service
IEEE802.1Q VLAN Tag
IEEE802.1x User Authentication (Radius)
Mac Address 8192 MAC address table
Priority Queues 4
Processing  Store-and-forward
Switch Properties Switching latency : 7μs
Switching bandwidth : 5.2Gbps
Max. number of Available VLANs : 4096
IGMP multicast groups: 1024
Port rate limiting : user define
Security Features Enable/disable ports, MAC based port security
Port based network access control (802.1x)
VLAN (802.1Q) to segregate and secure network traffic
Supports Q-in-Q VLAN for performance & security to expand the VLAN space
Radius centralized password management
SNMP v1/v2c/v3 encrypted authentication
Software Features STP/RSTP/MSTP (IEEE 802.1D/w/s)
Redundant Ring (with recovery time less than 10ms over 250 units)
TOS/Diffserv supported
Quality of Service (802.1p) for real-time traffic
VLAN (802.1Q) with VLAN tagging and GVRP supported
IGMP Snooping for multicast filtering
Port configuration, status, statistics, monitoring, security
SNTP for synchronizing of clocks over network
Support PTP client (Precision Time Protocol) clock synchronization
DHCP Server / Client support
Port Trunk support
MVR (Multicast VLAN Registration) support
Network Redundancy R-Ring
STP
RSTP
MSTP

Warning/Monitoring

System		 Relay output for fault event alarming
Syslog server / client to record and view events
Include SMTP for event warning notification via email
Event selection support
RS-232 Serial Console RS-232 in RJ45 connector with console cable. Baud rate : 9600bps, 8, N, 1
Relay Relay output to carry capacity of 1A at 24VDC
LED Power indicator : Power LED * 3 (Green)
R.M. indicator : Indicate system operated in Ring Master mode (Green)
Ring indicator : Indicate system operated in Ring mode
Fault indicator : Indicate unexpected event occurred (Amber)
10/100TX RJ45 Port : Link/Act (Green), Full duplex/collision (Amber)
Redundant Input Power Triple DC inputs. 12~48VDC on 7-pin terminal block, 12~45VDC on power jack
Power Consumption 8 Watt
Overload Current Protection Present
Enclosure IP-30
Case Dimension 52mm (W) x 106.1mm (D) x 144.3mm (H)
Weight 735 g
Operating Humidity 5% ~ 95% (Non-condensing)
Operating Temperature -40°C~+75°C
Storage Temperature -40°C~+85°C
Installation DIN Rail and Wall Mount Design

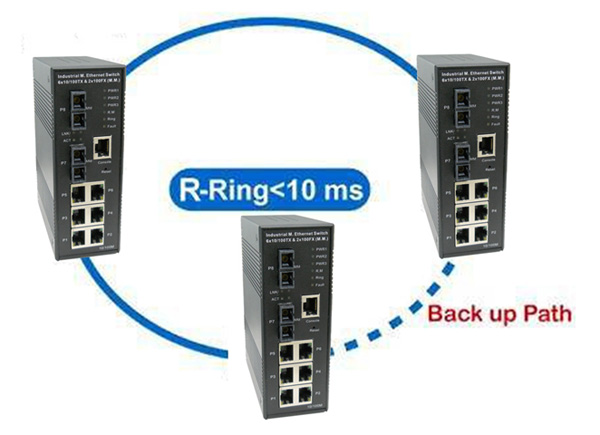

   Application:

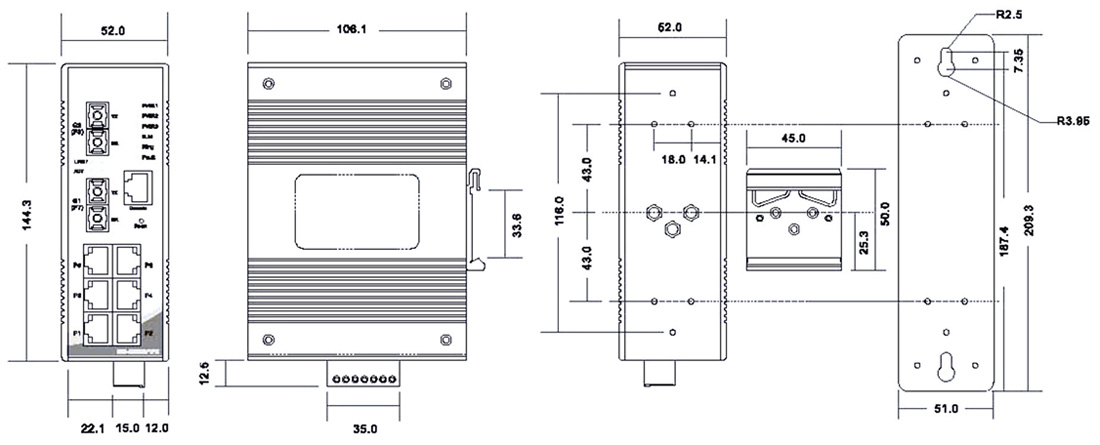

  Dimension:
