Industrial Switch Hub Series




EX9711                                                                       Industrial 6 Port 10/100Mbps unmanaged Ethernet Switch


Key Specifications/Special Features:



Introduction:

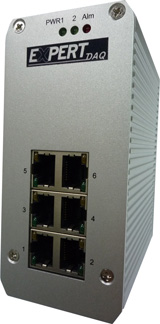

EX-9711 is 6-port Industrial Fast Ethernet Switch that is designed for a demanding network environment, Ethernet connection and the built-in smart alarm function. This product has a wide operating temperature and a high degree of vibration and shock. It provides IP31 aluminum case, DIN-rail kit and redundant power inputs. Redundant Power Inputs

EX-9711 provides two power inputs that can be connected simultaneously to live DC power source. If one of the power input fails, the other live source acts as a backup to automatically support the EX-9711’s power needs
.



Feature:

6* 10/100BaseTX RJ45 ports
Support IEEE802.3/802.3u/802.3x
10/100M, Full/Half-Duplex, MDI/MDI-X auto-sensing
Built-in Link lose forwarding technology
Non-blocking switching performance
Power failure, port break alarm by relay output
Redundant DC Power Input
IP31, Rigid Aluminum Case
Broadcast Storm Protection
-25 to 70 °C Operating Temperature
-40 to 80 °C Storage Temperature
DIN-Rail Kit/Wall-mounting/Desktop installations



 Technology
 Standards   IEEE802.3, 802.3u, 802.3x
 Packet Buffer Memory   768Kb
 Processing Type   Store and Forward
 MAC Address   2K
 Flow Control   IEEE802.3x flow control, back pressure flow control
 Filtering/Forwarding Rates   100Mbps port - 148,800pps
 10Mbps port - 14,880pps
 Transmission Media  10BaseT Cat. 3, 4, 5 UTP/STP
 100BaseTX Cat. 5 UTP/STP
 Interface
 RJ45 Ports   6 10/100BaseT(X) auto-negotiation speed, F/H-Duplex mode, and auto-MDI/MDI-X connection
 Led Indicators   Per unit : Power (green)
Per port: Link (green on)/Activity(green blinking), Full

 DIP Switch   Port break alarm
 Alarm Contact   One relay output with current carrying capacity of 1A @ 24 VDC
 Power
 Input Voltage   24VDC (12 to 48 VDC), redundant inputs
 Terminal Block   Removable 9-pin Terminal Block
 Power Consumption   8 Watts
 Reverse Polarity Protection   Yes
 Mechanical
 Casing   IP31 protection, metal case
 Dimensions   55 x 120 x 108 mm (W x H x D)
 Weight   642g
 Installation   DIN-Rail, Wall-mounting, Desktop
 Environment
 Operating Temperature    -25 to 70°C
 Storage Tempature    -40 to 85°C
 Humidity    0 to 95% RH (non-condensing)
 Hi-Pot    1.2KV for all ports and power
