EX9000/EX9000-Modbus Series

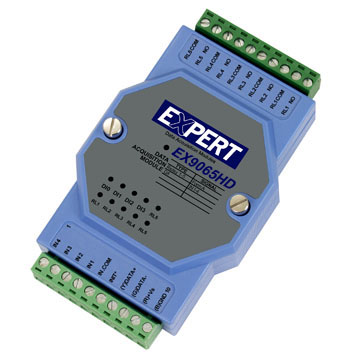

EX9065AHD                                                        5 Output channels(AC-SSR, 24 to 265 Vrms), 5 Input channels


Key Specifications/Special Features:



Digital O/P Channel: 5

Relay type:   9065HD/M  5A@250VAC/30VDC

9065AHD/M AC-SSR Normal Open

9065BHD/M DC-SSR Normal Open

Digital I/P Channel: 5

Isolation: Isolation with common Sources

Isolation Voltage: 3750Vrms

Digital Level 0: 1V Max

Digital Level 1: 4V to 30V

Input Impedance: 3K Ohms

Dual Watchdog Timer

Power Input: +10V to 30VDC

Power Consumption: 1.5W

Operating Temp: -25~75
