Micro PLC w / Expansion Board Series




EX9188EX/EX9188EX-MTCP


Key Specifications/Special Features:

         Main board suitable for I/O Expansion board

         Support 1*RS232, 1*RS485

         Ethernet port for TCP/IP features TCP, UDP, IP, ICMP, ARP, RARP

         COM1 Can be used to download program and can be RS232 port

         Dual Watchdog support for system recovery

                       o        CPU 80188, 40MHZ

o        SRAM 512KB

o        FLASH ROM 512KB

o        EEPROM 2KB

o        EMBEDDED OS RomDos(Datalight)

o        Support RTC

         Operating Temp: -25~75

         Power input: +10 to 30VDC (35/48VDC Available)

         Modbus/TCP to multi Modbus/RTU (EX9188EX-MTCP)

      For Modbus/RTU slave devices (EX9188EX-MTCP)






What is EViSP?



The EViSP creates a bridge between the host PC and 9188E via TCP/IP protocol. By using EViSP, the host PC can treats the COM port of 9188E as its own internal COM port so that the application programs can simply control the COM port of 9188E without handling the network (TCP/IP) layer.

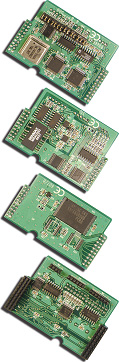

I/O Expansion Board



Expansion Board for EX9188E/EX9188EX-MTCP:





RS232

SRAM

Storage Flash

D/I

D/O

D/A

A/D

EX100

x

x

x

*7

x

x

x

EX101

x

x

x

x

*7

x

x

EX310 Series

EX310-1

x

x

x

*3

*2

*2

*2

EX310-2

x

x

x

*2

*3

*1

*1

EX310-3

x

x

x

*3

*2

*1

*1

EX310-4

x

x

x

*2

*3

x

*2

EX310-5

x

x

x

*3

*2

*2

x

EX310-6

x

x

x

x

x

x

*1

EX509 Series

EX509-1

*2

x

x

*5

*2

x

x

EX509-2

*2

x

x

*4

*3

x

x

EX509-3

*2

x

x

*3

*4

x

x

EX509-4

*2

x

x

*2

*5

x

x

EX603

x

x

16M Bytes

x

x

x

x

EX604

x

x

32M Bytes

x

x

x

x

EX607

x

256K

x

x

x

x

x

EX608

x

512K

x

x

x

x

x



P.S. RS232 3-Wire up to 115.2K.

        SRAM with Battery Backup.

        D/A Range: 0~10V.

        A/D Range: 0~10V/0~20mA.
