Specifications/Special Features:
Introduction:

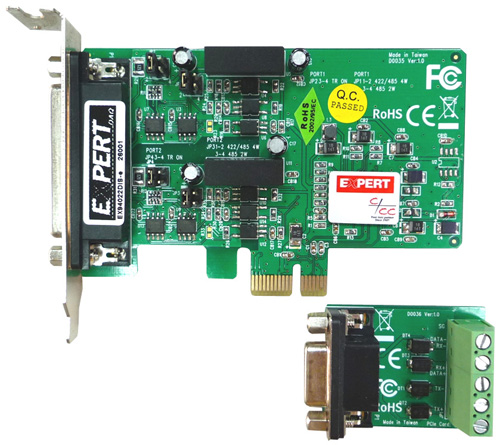

2 port High Speed Serial RS-422/485 PCI
Express(PCIe) Card supports Standard and Low Profile with 2.5KV
Optical & Voltage Isolation.
Feature:
■
Communication speed Maximum 921.6K BPS
■
BUS interface PCI Local Bus Spec 2.2
■
Circuit interface 2*RS422/RS485
■
Communication controller 16C1052
■
Connector DB9M/Terminal Block
■
2.5KV Isolation
■
Modbus
■
I/O address Automatic set-up
■
IRQ number Automatic set-up
■
Circuit Protection ESD Protector attached
■
Supporting operating system Windows
98/2000/NT/XP/Vista/Win7, Linux
|
Specifications:
|
Communication controller
|
Communication controller: 16C550 UART
Compatible register Set
Bus: PCI Express x 1
Connector: DB25 Female
|
|
Serial Interface
|
Number of ports: 2 ports
Serial Standard: RS-422(Point to Point
mode), RS-485(2 Wire RS-485 mode),
4 Wire RS-485(Multi-Drop RS-422 mode)
IRQ and I/O Address: Assigned by System
|
|
Serial Line Protection
|
ESD Protection: 15KV ESD Protection
for all signals
Isolation Protection: 2.5KV Opto & Voltage
Isolator Protection for each port
|
|
Performance
|
Baud rate: up to 921.6 Kbps
FIFOs: 256 byte
|
|
Serial Communication
Parameters
|
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
|
|
Serial Signals
|
RS-422: TxD+, TxD- RxD+, RxD-, GND
2 Wire RS-485: Data+, Data-, GND
4 Wire RS-485: TxD+, TxD-, RxD+, RxD-, GND
|
|
Driver Support
|
Windows: XP, 2003, Vista, 2008, Win
7
Linux: 2.6
QNX: 6.0
|
|
Physical Characteristics
|
Bracket: Standard and Low Profile
Bracket
Bracket Space: 1
|
|
Environmental Limits
|
Operating
Temperature :-30 ~ 75℃
Storage
Temperature: -40 ~ 85℃:
Ambient Relative Humidity: 5 ~ 95% Non-Condensing
|
|
Standards and Certifications
|
CE and FCC supports
|
|
Terminal Block for wire connection
|
EX-94022TIS-e only(option)
|
|
Package Content
|
2 port RS-422/485 PCI Express Optial
Isoaltion Card x 1
DB25 pin to 2 x DB9M Cable 30cm x 1
Low Profile Bracket x 1
Quick Instill Guide x 1
Driver CD x 1
|
|
|
User
Manual
