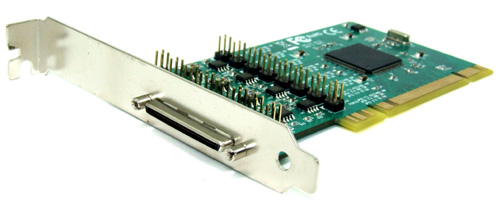

EX94028D                                                                                      8S RS-422/485 PCI Card (DB9)


Key Specifications/Special Features:



Introduction:


8 port High Speed Serial RS-422/485 PCI Card supports Standard and Low Profile.





Feature:

Communication speed Maximum 921.6K BPS
BUS interface PCI Local Bus Spec 2.2
Circuit interface 8*RS422/RS485
Communication controller 16C1052
Connector DB9M
Modbus
I/O address Automatic set-up
IRQ number Automatic set-up
Circuit Protection ESD Protector attached
Supporting operating system Windows 98/2000/NT/XP/Vista/Win7, Linux



Specifications:



Communication controller

Communication controller: 16C550 UART Compatible register Set

Bus: 32 bit Universal PCI 64/32bit 3.3V/5V PCI ver 2.3, 2.2, 2.1 and PCI-X

Connector: VHDCI 68 Female

Serial Interface

Number of ports: 8 ports

Serial Standard: RS-422(Point to Point mode), RS-485(2 Wire RS-485 mode),

4 Wire RS-485(Multi-Drop RS-422 mode)

IRQ and I/O Address: Assigned by System

Serial Line Protection

ESD Protection: 15KV ESD Protection for all signals

Surge Protection: Surge Protection for RS-422/485 signals

Performance

Baud rate: up to 921.6 Kbps

FIFOs: 256 byte

Serial Communication

Parameters

Data Bits: 5, 6, 7, 8

Stop Bits: 1, 1.5, 2

Parity: None, Even, Odd, Space, Mark

Serial Signals

RS-422: TxD+, TxD- RxD+, RxD-, GND

2 Wire RS-485: Data+, Data-, GND

4 Wire RS-485: TxD+, TxD-, RxD+, RxD-, GND

Driver Support

Windows: XP, 2003, Vista, 2008, Win 7

Linux: 2.6

QNX: 6.0

Physical Characteristics

Bracket: Standard and Low Profile Bracket

Bracket Space: 1

Environmental Limits

Operating Temperature :-30 ~ 75

Storage Temperature: -40 ~ 85:

Ambient Relative Humidity: 5 ~ 95% Non-Condensing

Standards and Certifications

CE and FCC supports

Terminal Block for wire connection

EX-94028T only(option)

Package Content

8 port RS-422/485 PCI Card x 1

VHDCI 68 to 8 x DB9M Cable 30cm x 1

DB9F to 5 pin Terminal Block Surge Adapter x 8 (optional)

Low Profile Bracket x 1

Quick Instill Guide x 1

Driver CD x 1
