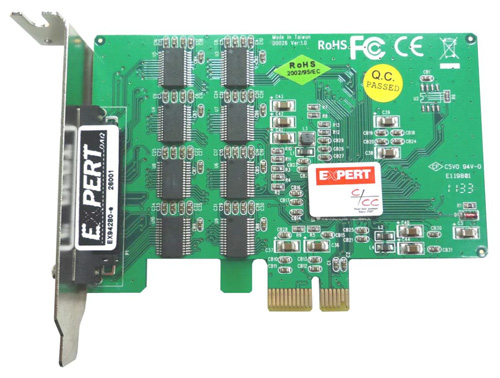

8 port High Speed Serial RS-232 PCI Express(PCIe) card support Standard and Low Profile Bracket
Feature:
■
Expands 8 com ports on system
■
High Speed Baud Rate up to 921.6Kbps
■
Design to meet PCI Express 2.0 Gen 1 compliant
■
Supports PCI Express x1, x2, x4, x8, and x16 Lane
■
Built-in 15KV ESD protection
■
Supports Industrial Specification
■
256 byte FIFOs
■
Supports Microsoft Windows, Linux, and QNX drivers
|
Specifications:
|
Communication controller
|
16C550 UART
Compatible register Set
Bus: PCI Express x 1
Connector: VHDCI68
|
|
Serial Interface
|
Number of ports: 8 ports
Serial Standard: RS-232
IRQ and I/O Address: Assigned by System
|
|
Serial Line Protection
|
ESD Protection: 15KV ESD Protection
for all signals
|
|
Performance
|
Baud rate: up to 921.6 Kbps
FIFOs: 256 byte
|
|
Serial Communication
Parameters
|
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, XON/XOFF
|
|
Serial Signals
|
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
|
Driver Support
|
Windows: XP, 2003, Vista, 2008, Win
7
Linux: 2.6
QNX: 6.0
|
|
Physical Characteristics
|
Bracket: Standard and Low Profile
Bracket
Bracket Space: 1
|
|
Environmental Limits
|
Operating
Temperature :-30 ~ 75℃
Storage
Temperature: -40 ~ 85℃:
Ambient Relative Humidity: 5 ~ 95% Non-Condensing
|
|
Standards and Certifications
|
CE and FCC supports
|
|
Package Content
|
8 port RS-232 PCI Express Card x 1
VHDCI to 8 x DB9M Cable 30cm x 1
Low Profile Bracket x 1
Quick Instill Guide x 1
Driver CD x 1
|
|
|
