EX9000/EX9000-Modbus Series

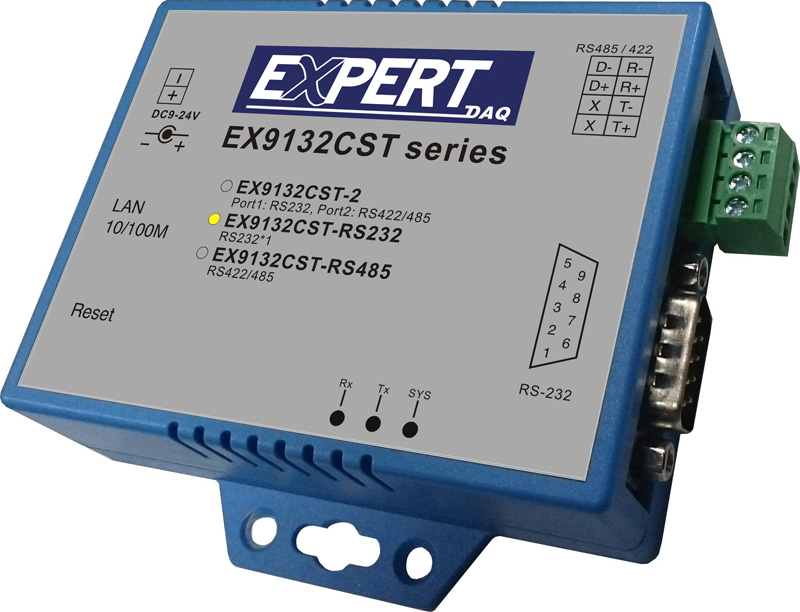

EX9132CST-RS232                                                                                                Serial to Ethernet converter(RS232*1


Key Specifications/Special Features:



CPU: ST ARM Cortex-M3 32 bit processor, 72MHz

RAM: 64 K Bytes SRAM

ROM: 256 K Bytes Flash ROM

Ethernet:
Port Type RJ-45 Connector
Speed 10 /100 M bps ( Auto Detecting )
Mode : TCP Server ∕ TCP Client ∕ UDP Client / Virtual COM / Pairing
Setup HTTP Browser Setup
Security Setup Password
Protection Built-in 1.5KV Magnetic Isolation

Serial Port * 1 ports:
Speed 300 bps~115.2 K bps
Parity None , Odd , Even , Mark , Space
Data Bit 7 , 8
Stop Bit 1 , 2
Port-1:
RS-232 Pins : Rx , Tx , GND , RTS , CTS , DTR , DSR , DCD

Watch Dog Function

Power: DC 9 –24 V , 500mA , DC Jack

Led Lamp: RX, TX, SYS

Environment: Operating Temperature: -10℃70℃Storage Temperature : --20℃80℃

Dimensions: 115 * 90 * 27 mm ( W * D * H )

Weight: 140 gm
