EX9000/EX9000-Modbus Series




EX9133C-2                                                                                                                 Serial to Ethernet converter


Key Specifications/Special Features:



CPU: 32-bit ARM-Cortex-M4 CPU, 120MHz( Max)

RAM: 128 K Bytes SRAM

ROM: 512 K Bytes Flash ROM

Ethernet:
Port Type RJ-45 Connector
Speed 10 /100 M bps ( Auto Detecting )
Mode : TCP Server ∕ TCP Client ∕ UDP Client / Virtual COM / Pairing
Setup HTTP Browser Setup
Security Setup Password
Protection Built-in 1.5KV Magnetic Isolation

Serial Port * 2 ports:
Speed 300 bps~115.2 K bps
Parity None , Odd , Even , Mark , Space
Data Bit 5 , 6 , 7 , 8
Stop Bit 1 , 2
Port-1:
RS-232 Pins : Rx , Tx , GND , RTS , CTS , DTR , DSR , DCD
Port-2:
RS-422 Rx+ , Rx- , Tx+ , Tx- (Surge Protect)
RS-485 Data+ , Data- (Surge Protect)Built –in RS-422/RS-485 pull high Resistor15KV ESD for all signals

Watch Dog Function

Power: DC 9 –24 V , 500mA , DC Jack

Led Lamp: SYS (PWR) , Port 1/2 , DI/DO

Environment: Operating Temperature: 0℃70℃Storage Temperature : -10℃80℃

Dimensions: 115 * 90 * 27 mm ( W * D * H )

Weight: 140 gm

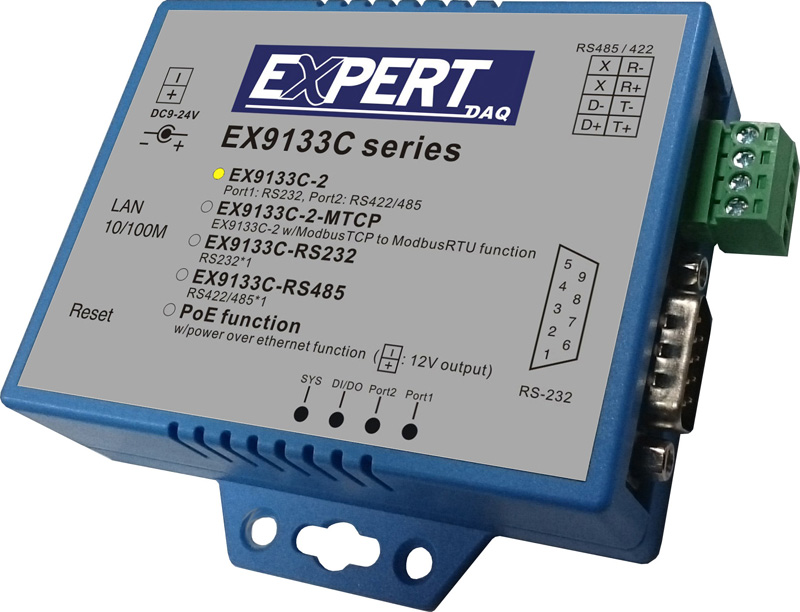

     larger photo
