EX9000/EX9000-Modbus Series




EX9133C-RS485                                                                Serial to Ethernet Converter (RS422/485*1)


Key Specifications/Special Features:



ARM-Cortex-M4 CPU
HTTP Browser Setup (IE)
Speed: 10/100 Mbps (Auto Detect)
Protocol: ARP, IP, ICMP, UDP, TCP, HTTP, DHCP
Security: Login Password
Port:RS-422/485 * 1 (Auto Detect)
IP Search Utility
Virtual COM
DC9~24V, 300mA@12VDC; DC Jack/Terminal Block

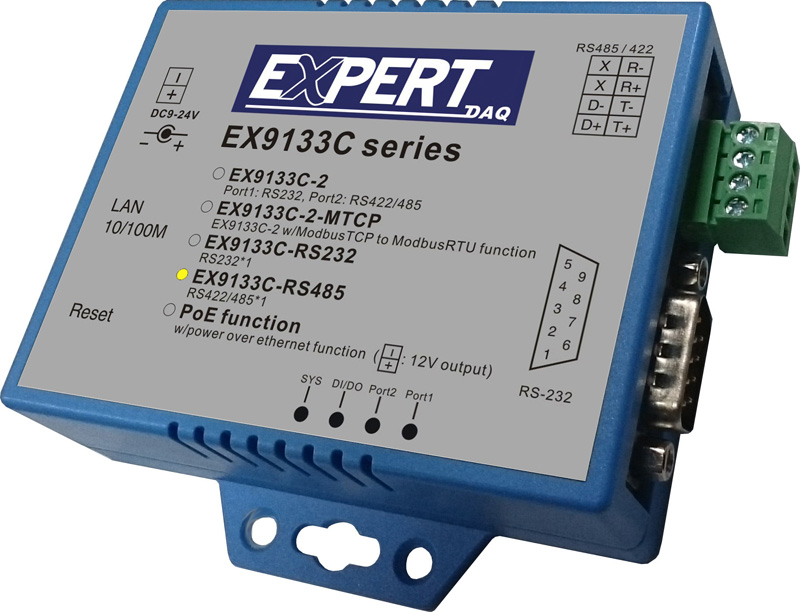

     larger photo
   User Manual


Driver

     Specifications:

Hardware

CPU : ARM Cortex™-M4 32-bit processor , 120MHz

RAM128K bytes SRAM

ROM512K bytes Flash ROM

Ethernet

Port TypeRJ-45 Connector

Speed10 / 100 Mbps ( Auto Detect )

ProtocolARP , IP , ICMP , UDP , TCP , HTTP , DHCP

ModeTCP Server / TCP Client / UDP / Virtual Com / Pairing

SetupHTTP Browser Setup

SecurityLogin Password

ProtectionBuilt-in 1.5KV Magnetic Isolation

Serial Port * 1



Port:RS-422/485 * 1 (Auto Detect)
Port Type:Terminal Block * 1
Speed:300 bps ~ 115.2 Kbps
Parity:None , Odd , Even , Mark , Space
Data Bit:5 , 6 , 7 , 8
Stop Bit:1 , 2
RS-422 Signals:Rx+ , Rx- , Tx+ , Tx- (Surge & Over Current Protect)
RS-485 Signals : Data+ , Data- (Surge & Over Current Protection)
Built-in RS422/RS485 Pull High-Low Resistor

Digital I/O * 16 TTL (optional)

Watch Dog Function

IP Search Utility

Support Windows 2000 /2003 / XP / Vista / 7 / 8 / 10

Virtual COM

Support Windows 2000 /2003 / XP / Vista / 7 / 8 / 10

Firmware On-line Updated Via Ethernet

Power

DC 9 ~ 24V, 300mA @12VDC; DC Jack/ Terminal Block (optional)

LED Lamp

SYS, DI/DO, Port2, Port1

Environment

Operating Temperature: -10 ~ +70

Storage Temperature : -20~ +85

Dimension

115 * 90 * 27 mm ( W * D * H )

Weight

140 gm

Din-Rail and Panel mounting options

Regulatory Approval

CE / FCC
