Simple Gateway Series

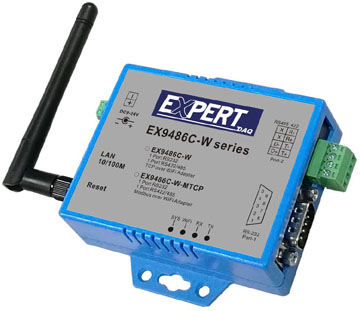

EX9486C-W-MTCP                                Modbus RTU/ASCII to WiFi (Modbus TCP) Converter (RS232/422/485*1)


Key Specifications/Special Features:



Modbus RTU/ASCII Slave to Modbus TCP Master
Modbus TCP Slave to Modbus RTU/ACSII Master
Modbus modes*4 Browser selectable
Support 8 TCP Masters simultaneously
Support serial Master access to 8 TCP Slaves
Web Browser Configuration
Easy Wireless setup by PC or Mobile
Supports 802.11b/g/n


     larger photo
   User Manual


Driver

     Specifications:

Hardware

CPU:ARM-9 CPU Linux OS, 200 MHz
RAM:32MB Internal SRAM
ROM:64M Bits Flash ROM
Watchdog:Built in H/W Watchdog timer

WLAN

Standard:802.11b/g/n
Data Rate:11/54/72.2 Mbps @20MHz Band Width
Modulation:DSSS; OFDM
Frequency:2.4GHz
Tx Power 11b:Max. 19dBm
Tx Power 11g/n:Max. 16dBm
Rx Sensitivity:-73dBm @ 54Mbps; -86dBm @ 11Mbps
Tx Rate:Max. 54Mbps with auto fallback
Tx Distance:Up to 100m
Security:WEP 64-bit / 128-bit data encryption, AES,
WPA / WPA2 personal, WPS2.0, WAPI
Antenna:2 dBi RP-SMA connector
Network Mode Infrastructure:Ad-Hoc; Soft AP (Setup)
Mode:TCP Server / TCP Client
Setup:HTTP Browser Setup (IE, Chrome, Firefox)
Security:Login Password

Serial Interface



Port number:1
Port Type:RS-232 or RS-422/485 1 port S/W selectable

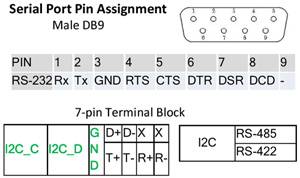

Connector:Male DB9 / 7-pin Terminal Block
Speed:110 bps ~ 115.2 Kbps
Parity:None , Odd , Even , Mark , Space
Data Bit:5, 6 , 7 , 8
Stop Bit:1 , 1.5, 2
Builtin:RTC(Real Time Clock)
Protection:422/485 Surge & Over Current Protection
Built in 15KV ESD protection for all signals

Software

Modbusv:RTU/ ASCII Slave to TCP Master
4 Modes:TCP Slave to RTU/ ASCII Master Selectable through Web Browser
TCP Master:Up to 8 simultaneous TCP Master
Serial Master:Access to 8 TCP Slaves simultaneously
OS Supported:Win 2000/2003/XP/Vista/Win 7/Win 8
Configuration:Web Browser

Virtual COM

Support Windows 2000 / 2003 / XP / Vista / Win-7

Power DC 9 ~24V, 200mA@ 12VDC

Environment

Operating Temperature:-10C ~ 65C (14F ~ 149F)
Storage Temperature:-20C ~ 70C (-4F ~ 58F)
Humidity (Operating):10% ~ 95% non-condensing
Humidity (Storage):5% ~ 95% non-condensing

Certification

FCC:Part15 Class A
CE:EN55022 Class A, EN55024
RoHS:Compliance





Order Information:


Optional:Din-Rail mounting kits
Power supply(Linear/ Swintching)
Accessories:CD(Utility/ Exbrowser ; IP Search)





Relative products:EX9132/EX9132-2/EX9132C-2/
EX9132C-RS232/EX9132C-RS485/
EX9132C-2-MTCP/EX9486C-W/ EX9486-W

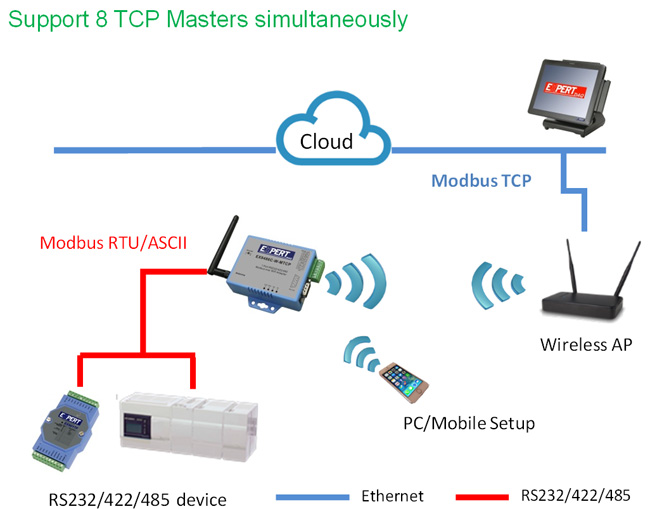

Application of ModbusTCP(master) to Modbus RTU/ASCII(slave):

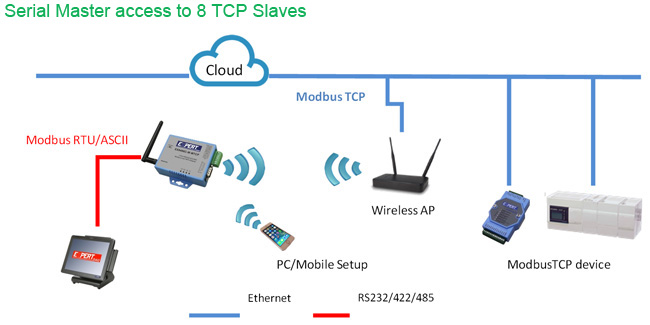

Application of ModbusRTU/ASCII(master) to ModbusTCP (slave):
