EX9632R-H                                                                                              Tri-Band 3G Industrial Cellular Converter


Introduction of Product


EX9632R-H/EX9633R-H is a industrial class UMTS (3G, HSPA or EVDO) converter for system integrator to control remote device though Ethernet and TCP/IP protocol. By the time goes, technology today is all about communication. Internet network is a part of everyday life. Although Cable/DSL is wide spread everywhere, however, some field or outdoor application, such like large factory, mine, quarry are not able to be reached by those indoor broadband. The wireless network becomes a crucial part of industrial control for efficiency and convenience.


EX9632R-H/EX9633R-H industrial converter provides you a solution to access your field computer/micro processor/embedded system through 3G network by TCP/IP. Simply using by 3G/3.5G mobile network, you are about to control remote device or collect first hand, real time information by a broadband data stream.With up to 7.2Mbps*(HSUPA)speed, you can transfer any kinds of data steam, specially video or audio, through EX9632R-H/EX9633R-H industrial converter. With the simplest setting and configuration, you canenjoy the convenience of real time monitor filed situation without walk there.



Product Highlight

EX-9632R-H
◦ Tri-Band 3G: WCDMA 850/1900/2100 MHz
◦ Qual-Band 2G: GSM 850/900/1800/1900 MHz
◦ 3G Data Rate: max UL 384kbps/DL 384kbps
◦ 3.5G Data Rate: max DL 7.2Mbps
RJ45 interface
WEB UI configuration
DHCP client/server, NAT, VPN support





Specifications:


Products Name EX-9632R-H
Frequency .WCDMA 850/1900/2100 MHz
.GSM 850/900/1800/1900 MHz
GPRS Connectivity .GPRS Multi-Slot Class 12
.GPRS Mobile Station class B
Data Rate .GSM: UL 9.6kbps/DL 9.6kbps
.WCDMA CS: UL 64kbps/DL 64kbps
.WCDMA PS: UL 384kbps/DL 384kbps
.HSUPA: UL 2.0Mbps/ DL 7.2Mbps
(UL can be updated to 5.76M)
Coding Scheme

.CS-1, CS-2, CS-3 and CS-4

Output power

 ≤2.5W

Configuration

 WEB UI

Network Protocol

.DHCP Server/Client
.NAT
.SPI Firewall
.VPN
.SNMP

Interface

 RJ45 (10/100 Base-T)

Serial Port

 RS232 DB9

SIM  3V/1.8V
Antenna  Female SMA
Voltage  DC5~25V (12V)
Temperature

.Operation: -10°C to +65°C
.Storage: -40°C to +85°C

Humidity  5% ~ 95% relative humidity
Dimension  75x50x16 mm
Weight  200g
PCB Dimension  N/A

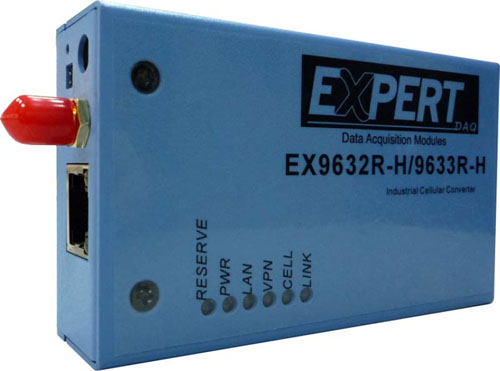

     larger photo
